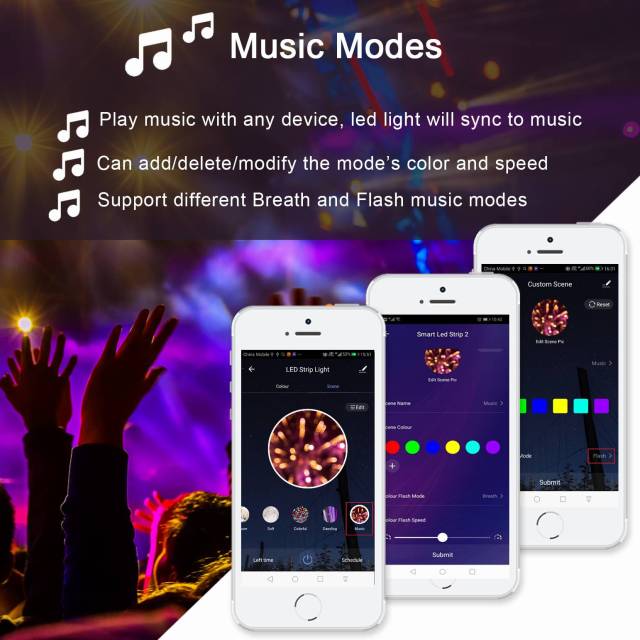

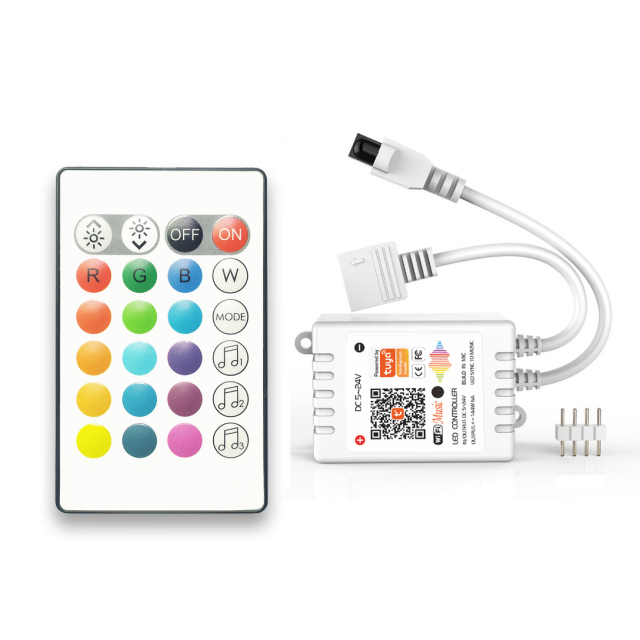

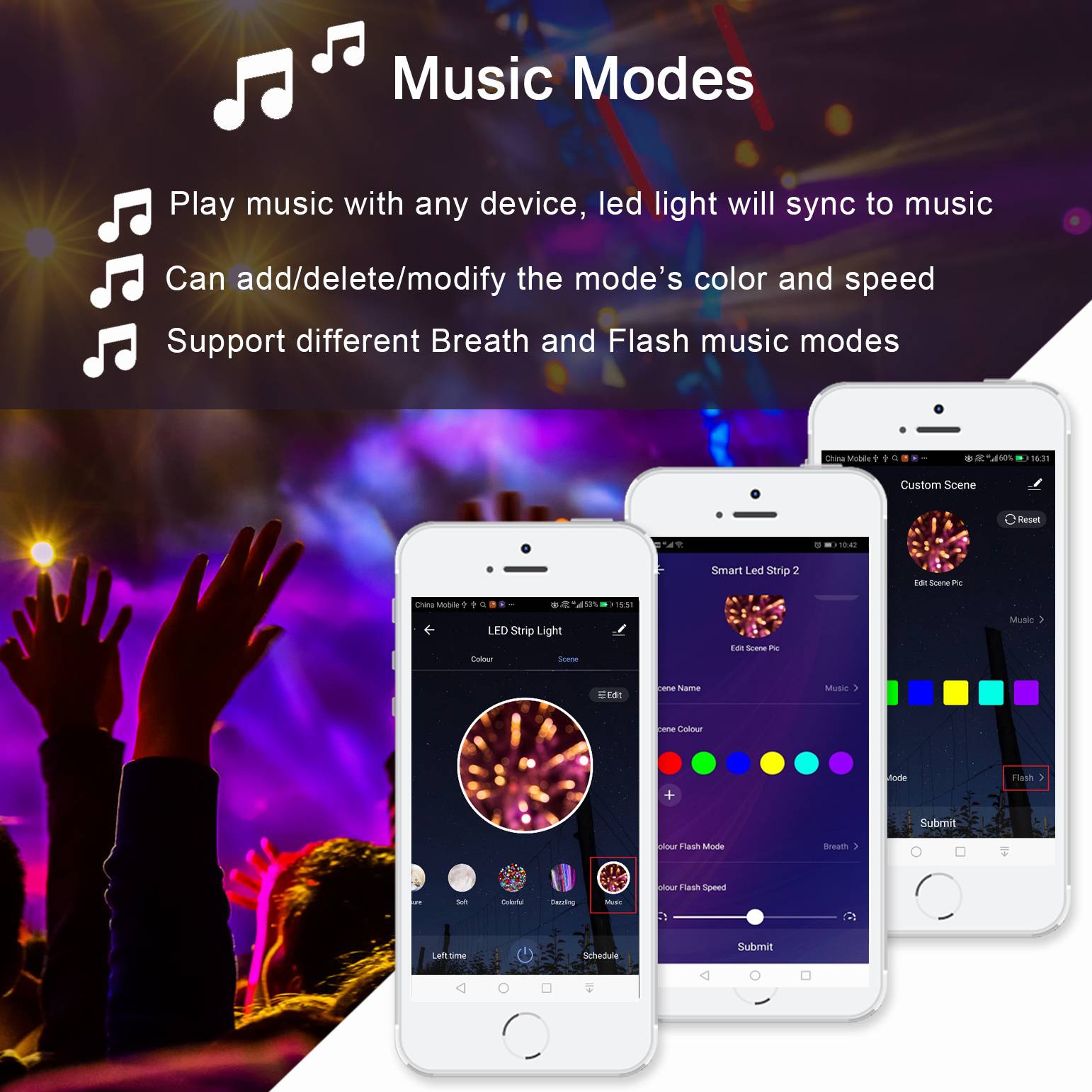

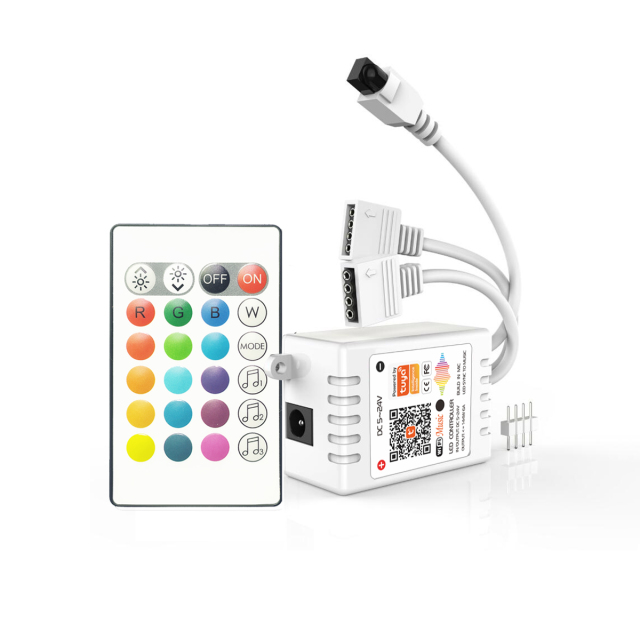

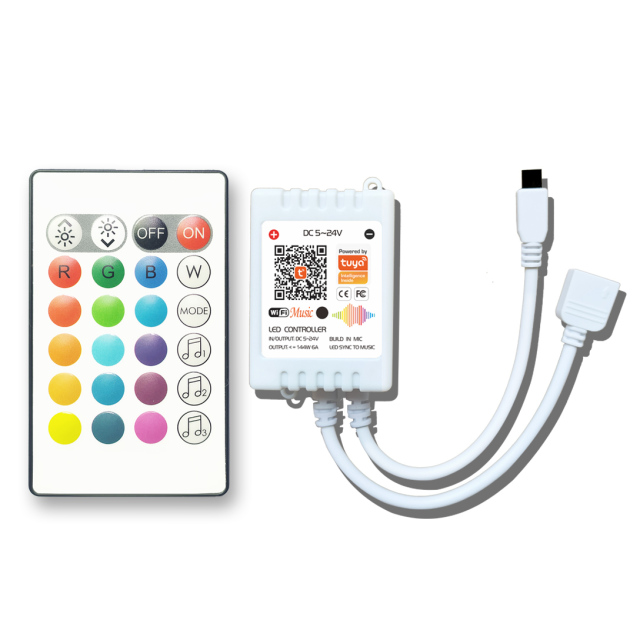

Tuya WiFi MUSIC IR 24-keys RGB controller is a intelligent LED controller which is compatible with mobile phone control, voice control and IR remote control. It use Tuya wifi solution technology to ensure device’s stability in LAN control and remote control. Main function are music control modes, 16 million colors adjustment, dynamic modes, brightness adjustment, speed adjustment, DIY modes, Timing function etc.
Product Overview

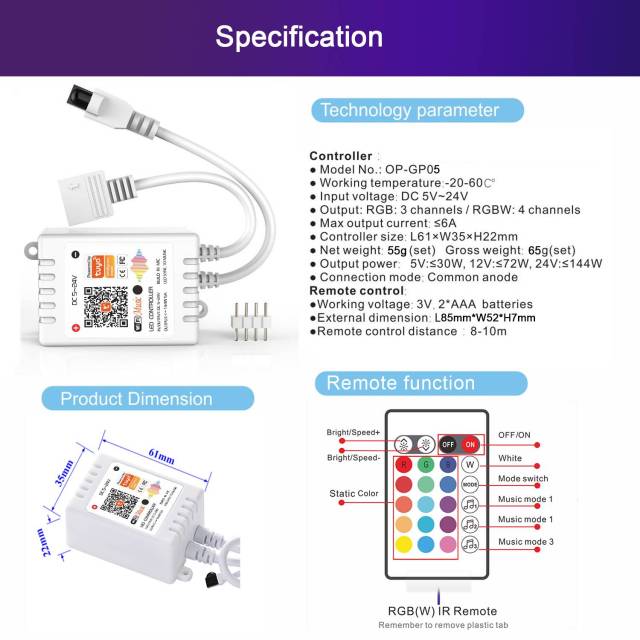

Technical Parameters：
Controller：
Remote control：

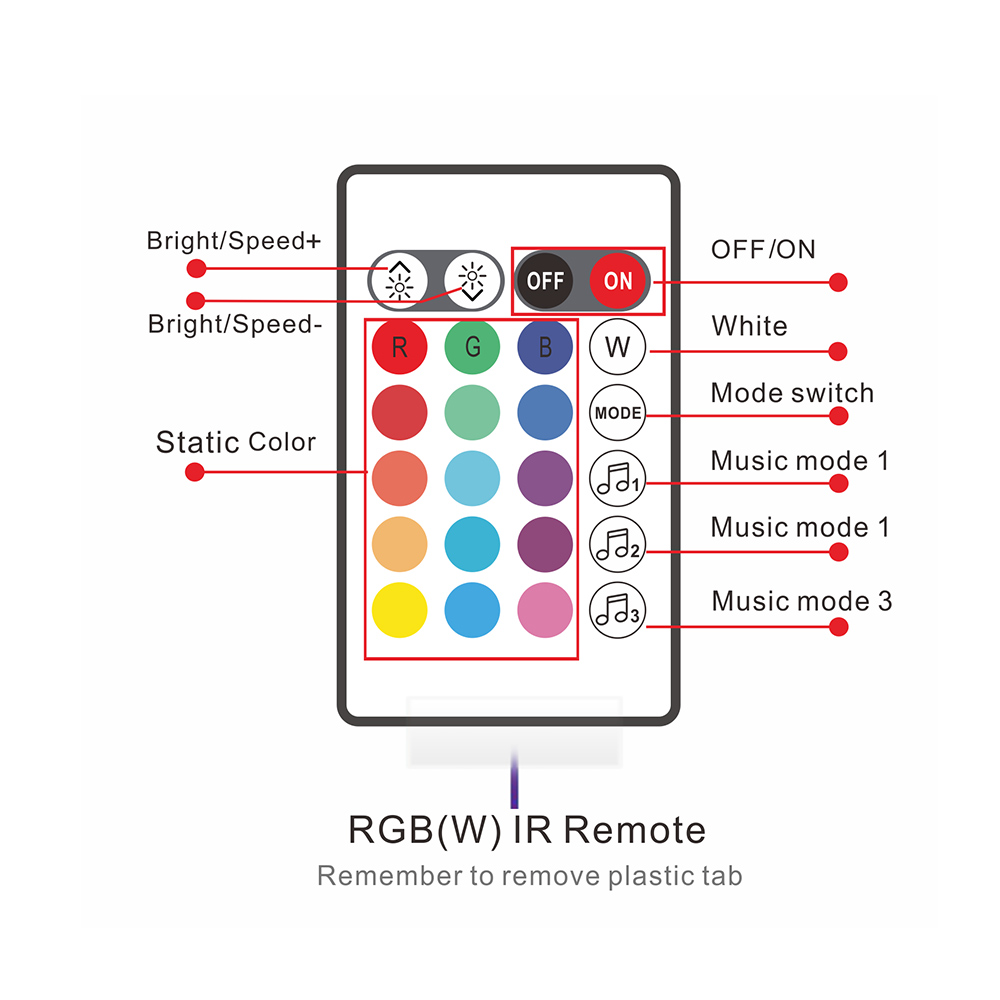

Remote control instruction：
Tuya APP wifi device pairing instructions:
1. Before use, please install wifi control software App (“Tuya Smart” or “Smart life”) on mobile, open the phone wifi function and connect the router.
2. Open the control software APP-“Tuya Smart”or“Smart life” on the phone:
If you don’t have an account, please click “Register” to register an account first; if you already have an account, you can use the existing account to log in directly.
3. After registration, log in and enter the homepage "Home", Click "Add Device" or "+" sign in the upper right corner to add a wifi device; Select the "Lighting" line item in the Add Manually column, select the “Lighting (Wi-Fi)” go to the “Add Device” page;

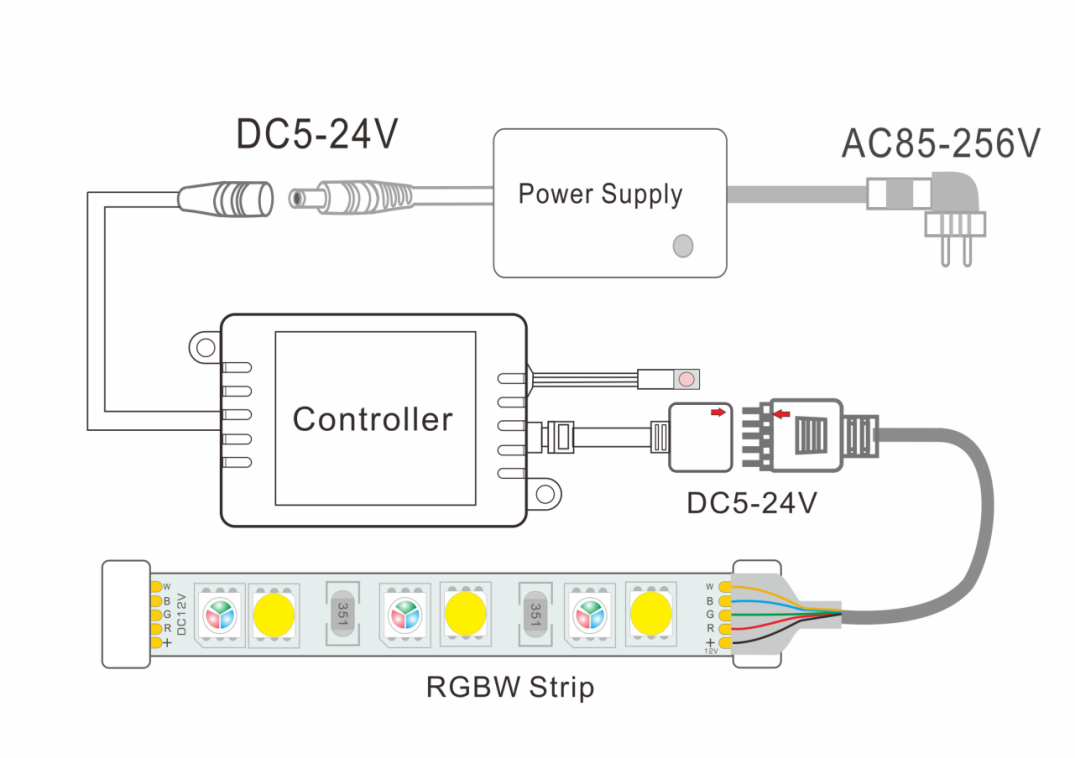

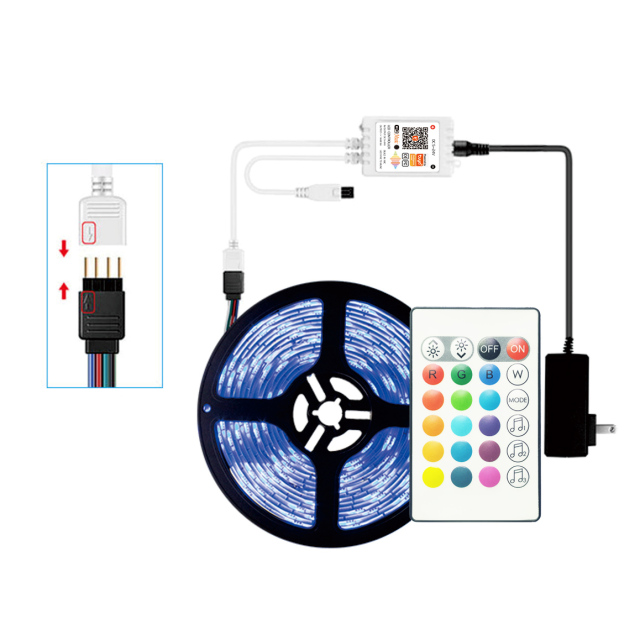

4. Controller device part installation :

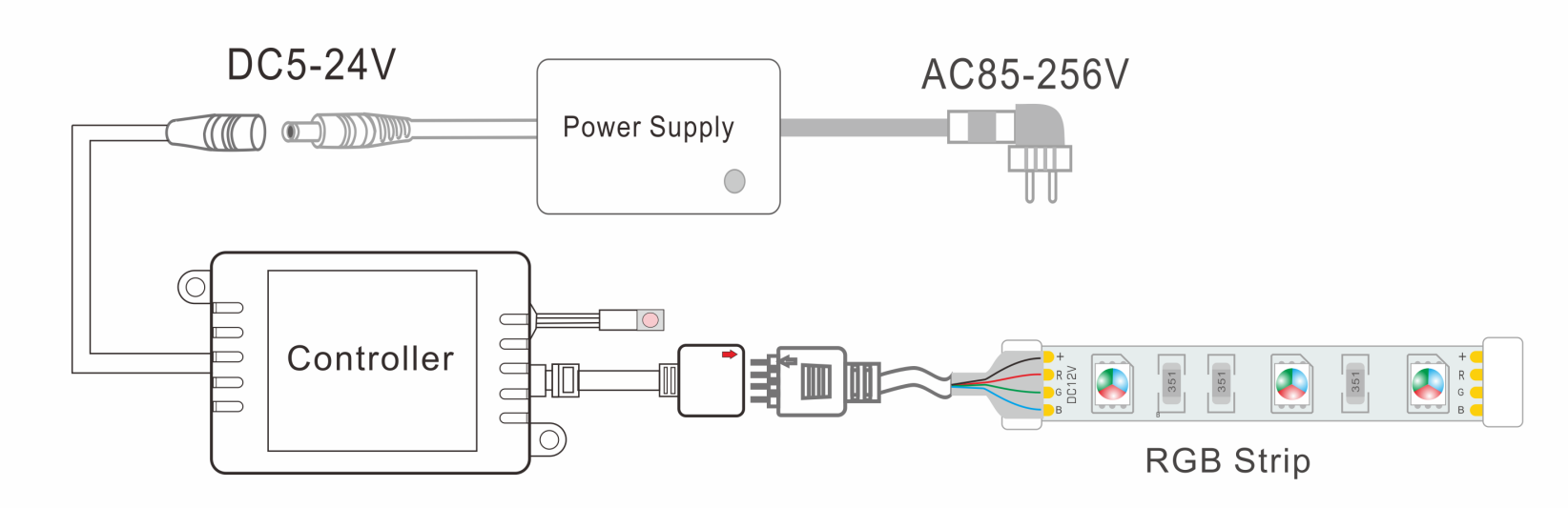

Connecting controller and output led light first, then connect the power supply , to ensure no short circuit between the cables before power on,supply voltage is DC5-24V, do not input on other voltage.
5.Wifi device configuration status setting & Factory reset:
Long press”on/off” button on the controller for 5 seconds into wifi pairing status, and the light fast blinking means setting successfully.
6.Select wifi routing network and input password ---> click “next”---> click “blinking quickly”--->, app will remind “ Add successfully” , the output light will stop fast blinking at the same time. now you can customize the naming settings for the controller.

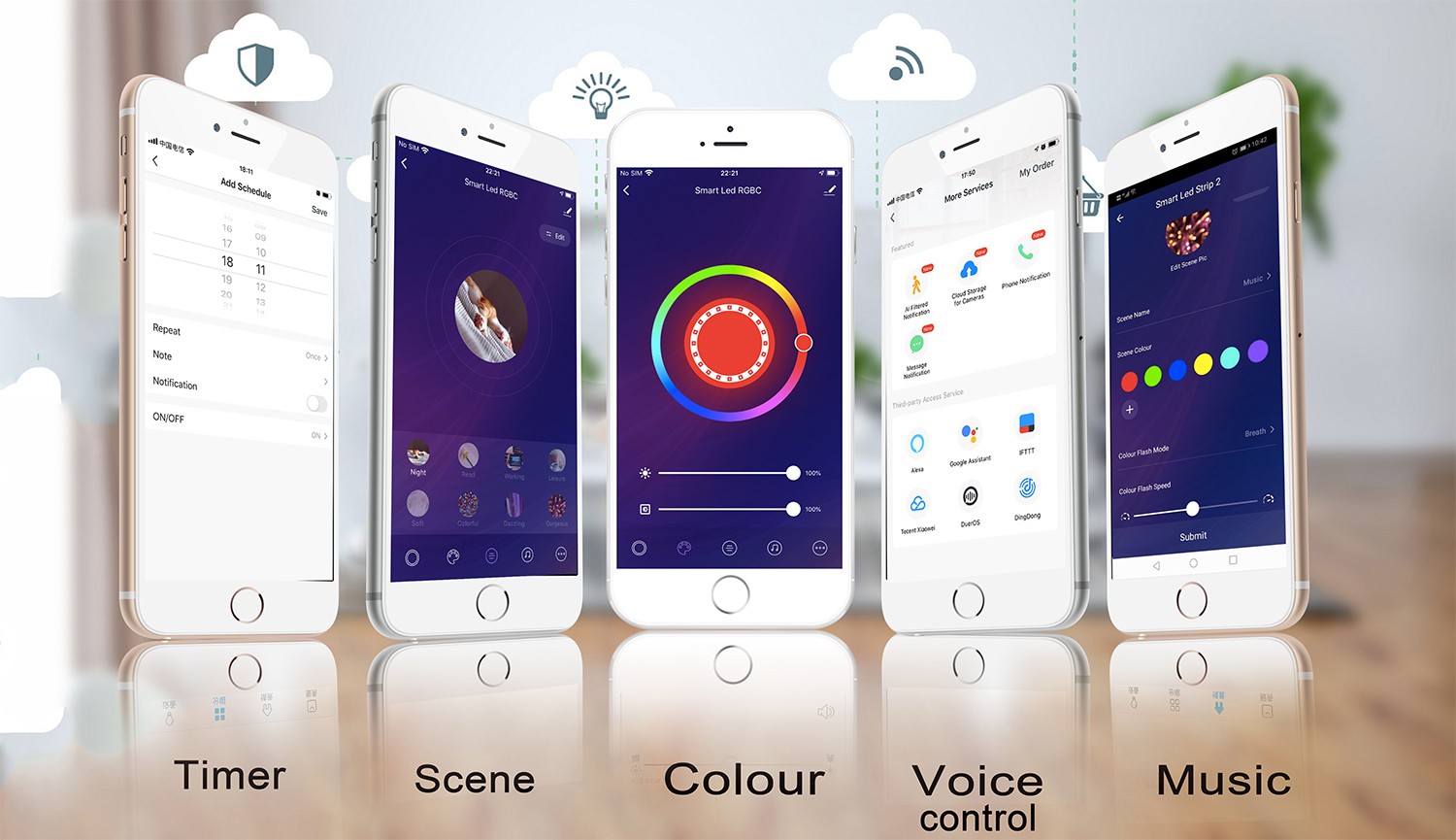

Tuya APP Interface:
Cautions:
