Technical Parameters：

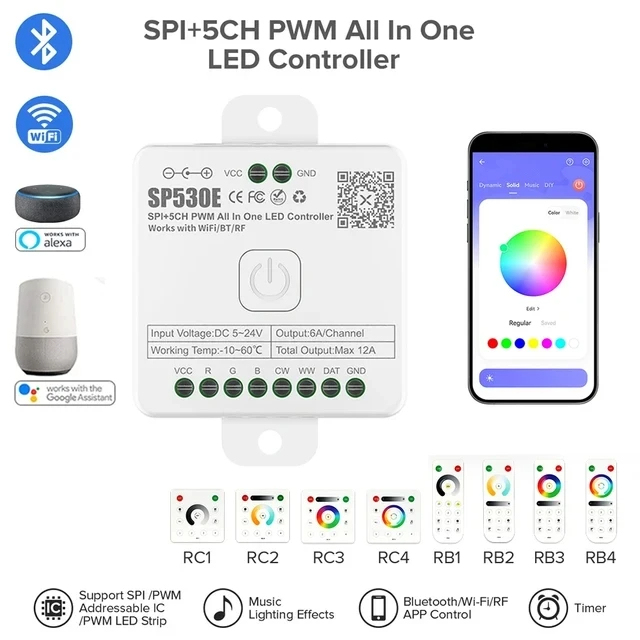

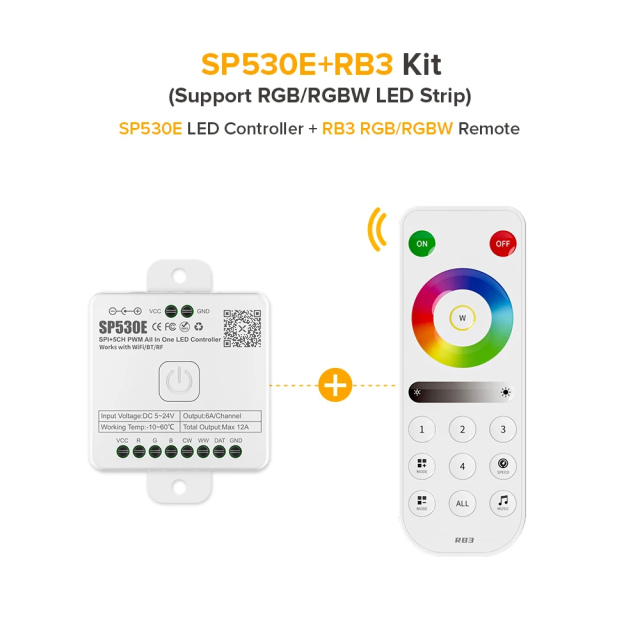

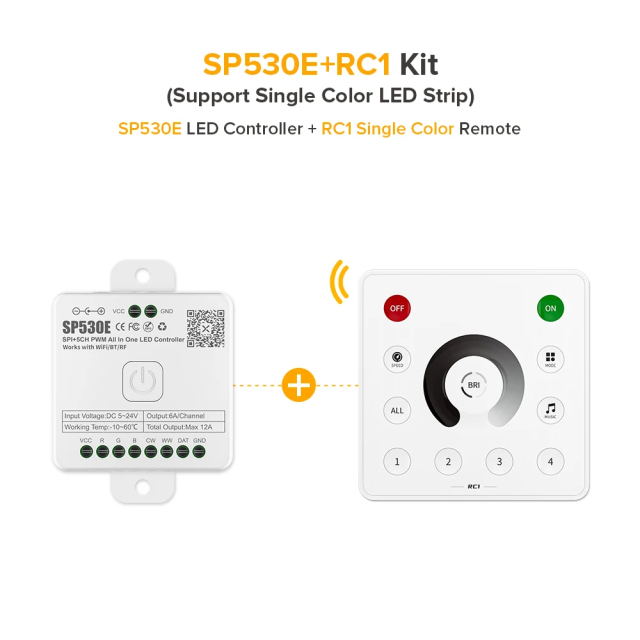

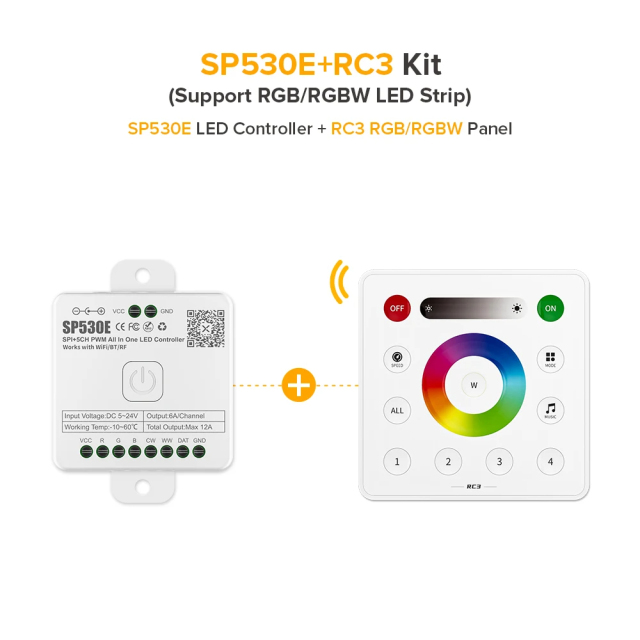

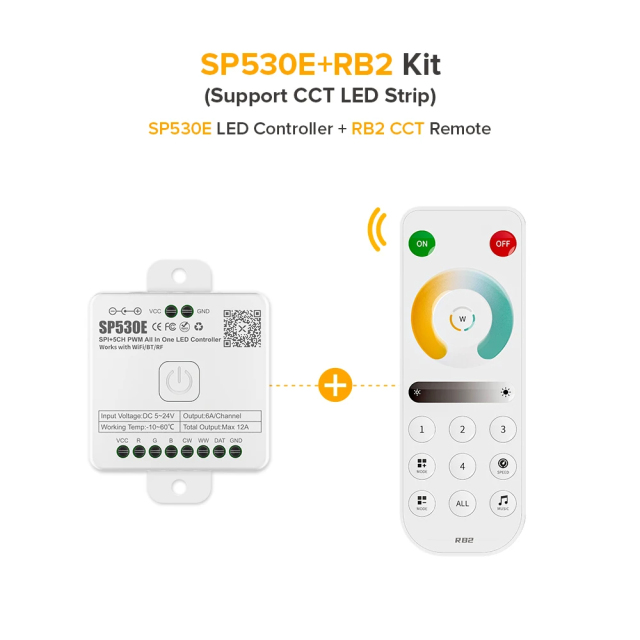

All In One LED Controller SP530E 5CH PWM SPI Pixels
For LED Strip WS2812B WS2811 SK6812 5050 RGB RGBW Alexa Music Works with Wifi/BT/RF 5-24V
Model Number SP530E all in one controller
Warranty 3 years
Certification CE,FCC,ROHS
Voltage 5-24V
Material Plastic, Metal
Power Source DC
Remote Distance Max 20m
Applicable Lights Most PWM or SPI LED Lights
Controlled Method Bluetooth /WIFI/RF app
Origin Mainland China
Max. Load Power 288W
Item Type RGB controller
Applicable Lights 1 1CH PWM Single Color
Applicable Lights 2 2CH PWM CCT
Applicable Lights 3 3CH PWM RGB
Applicable Lights 4 4CH PWM RGBW
Applicable Lights 5 5CH PWM RGBCCT
Applicable Lights 6 SPI Single Color
Applicable Lights 7 SPI CCT
Applicable Lights 8 SPI RGB
Applicable Lights 9 SPI RGBW
Applicable Lights 10 SPI RGBCCT
Applicable Lights 11 SPI RGB+1CH PWM Single Colo
Applicable Lights 12 SPI RGB+2CH PWM CCT
SP530E are versatile loT LED controller designed specifically for controlling various types of LED. Both of them supports RF remote control.
SP530E utilizes a dual-mode(2.4GHz WiFi and Bluetooth LE5.0) chip, enabling Bluetooth, WiFi, local network, or cloud connection via an App.
Parameter Table:
LED Type: SPI IC chip LED strip+PWM LED strip.
Input Voltage: DC5V-DC24V Controller voltage depends on LED strip.
Ways of Working: Match with Wifi Alexa Google Home/ RF remote/Bluetooth APP BalanX.
SP530E Support IC QTY:
SPI DIM: 1800 IC max.
SPI CCT: 600 IC max.
SPI RGB: 1200 IC max.
SPI RGBW: 900 IC max.
SPI RGBCCT: 600 IC max.
Support IC Chip SPI: WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc.
Support PWM Chip No IC: FCOB ,SMD5050,3014,3528,5730,5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW).
Features of SPI and PWM:
IC : SPI--- With IC; PWM---Without IC.
PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
Controller : SPI---ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM---WIFI WB5, Zigbee LM052, Bluetooth LM053.
Difference between SPI (with IC) strips and PWM (without IC) strips.
Features of SPI and PWM:
IC : SPI--- With IC; PWM---Without IC.
PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
Controller : SPI---ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM---WIFI WB5, Zigbee LM052, Bluetooth LM053.
Connection description:
Power input interface (port1):
Adopt conventional power transposon as a DC power input interface.Power input interface (port2):
Adopt male and female connector with screw.
Load output interface:
Adopt male and female connector with screw.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
