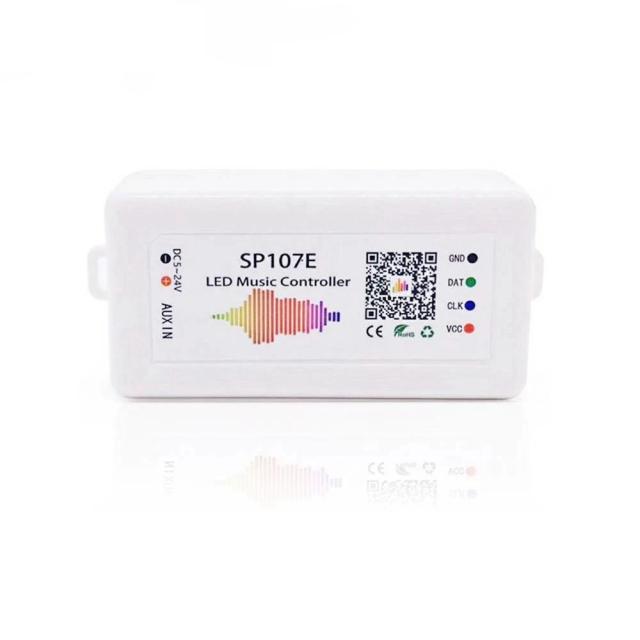

SP107E Bluetooth Pixel IC SPI LED Driver Controller

Technical Parameters：

• Working temperature: -20 ~ 60°C
• Supply voltage: DC5V~24V
• Working Current :18mA~45mA;
• Product size : 85mm*45mm*22mm;
• Net weigh: 40g
• Effects model: 180 modes
• Maximum control points:  2048 (High-speed) points
• Controlled IC Model: Such as the TM16726,TM2801,TM8806,WS2811, UCS1903 etc
• Remote distance : 20 Meters;

Both IOS version and Android OS version are available. (hardware should support Bluetooth)

• Requires IOS version 10.0 or later;
• Requires Android OS version 4.4 or later;
• Search “LED Chord” in App Store or Google Play or scan this QR code to download and install the APP:

Connection description:


Power input interface (port1):
Adopt conventional power transposon as a DC power input interface.

Direction for use:

APP Operatings:

1.Make sure you have turn on Bluetooth on your phone;

2.Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;

3.Select RGB order and IC type;

4.Adjust pixel number;

5.Press ENTER.

Audio Input:

There are two ways to input the audio signal on SP107E, AUX IN and Build-IN microphone;

• AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3,Phone or tablet…)and the speaker(or

headset), controller will automatically switch into AUX input mode;

• MIC: Disconnect the audio cable, controller will automatically switch into microphone input mode.

Package includes:
1x SP107E Bluetooth LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual

Connection description：
