Technical Parameters：
- Working temperature: -20 ~ 60°C
- Supply voltage: DC5V~24V
- Working Current :28mA~40mA;
- Product size : 85mm*45mm*22mm;
- Net weigh: 40g
- Effects model: 200 modes
- Maximum control points: 2048 (High-speed) points
- Controlled IC Model: Such as the TM16726,TM2801,TM8806,WS2811, UCS1903 etc
- Remote distance : 20 Meters;
App control:
The specialized App is available on both IOS and Android OS. (hardware should support Bluetooth 4.0)
- Apple Device:iPhone4S | iPhone5/5S/5C | iPhone6S/6s Plus | iPhone6 / 6 Plus,supportedIOS 8.0 version or later;
- Android OS version should be Android 4.4 or later.
- Search”Magic-LED”or scanning the QR code below to download and install the App:
Connection description:
Power input interface (port1):
Adopt conventional power transposon as a DC power input interface.
Power input interface (port2):Adopt male and female connector with screw.
Load output interface:Adopt male and female connector with screw.
Direction for use:
APP Operatings:
1.Make sure you have turn on Bluetooth on your phone;
2.Open the APP, drag to refresh the device list, select device name “SP105E” to connect the controller, once connected you will able to rename your controller;
3.Select RGB order and IC type;
4.Adjust pixel number;
5.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN and Build-IN microphone;
- AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3,Phone or tablet…)and the speaker(or
headset), controller will automatically switch into AUX input mode;
- MIC: Disconnect the audio cable, controller will automatically switch into microphone input mode.

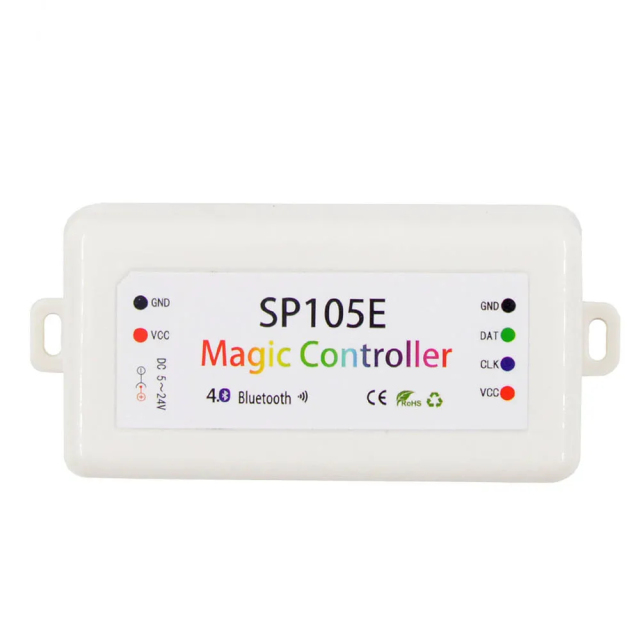

Package includes:1x SP105E Bluetooth LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual
Connection description：
Attention:
1. This products Input voltage is DC5V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
Application:
