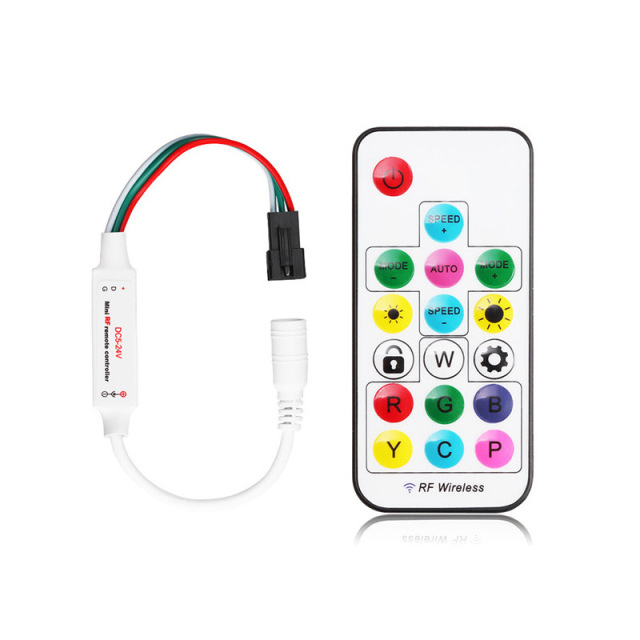

RF14 Keys SPI LED Controller -- DC5-24V IC led strip light controller

No.HC04

Feature:
1.It can support full color 5-24V IC LED strip, such as WS2811,WS2812...

2.Each controller can control up to 1024 pixels
3.With 63 Kinds effects, which are vivid and beautiful
4.32 levels brightness adjust, 10 levels speed adjust5.Works stably, easy to use and connection is simply
6.With user setting saving functionality
7.Preventing reverse connection of power supply
8.Widely used for 5-24V LED pixel strip, can be customized to support almost every one-wire or two-wire LED-DRIVER-IC

Model Number:

21 Keys Pixel Controller

Description

Key attributes

Industry-specific attributes

Warranty(Year)

1-Year

Type

Remote Control

Max. Load Power

Other attributes

Place of Origin

Guangdong, China

Lighting solutions service

Lighting and circuitry design, Project Installation

Luminous Efficacy(lm/w)

100

Product Weight（kg）

0.06

Brand Name

Connection Mode

Product name

21 Keys RF Pixel Controller

Input voltage

DC5-24V

Output current

Receiver size

L220*W12*H3mm

Remote size

L85*W40*H6mm

Remote battery

1*CR2025(include)

RF Remote distance

>20m at open area

IR Remote distance

10m

Connect way

Output for LED light, DC IN for power supply

Package

Anti-static bag

Supply Ability

3000 Piece/Pieces per Day

Product Descriptions

Product name	21 Keys RF Pixel Controller
Voltage	DC5-24V
Output current	6A
Receiver size	L220W12H3mm
Remote size	L85W40H6mm
Remote battery	1*CR2025(include)
Remote distance	>20m at open area(RF), 10M(IR)
Connect method	Common anode
Connect way	Output for LED light, DC IN for power supply
Package	Anti-static bag
