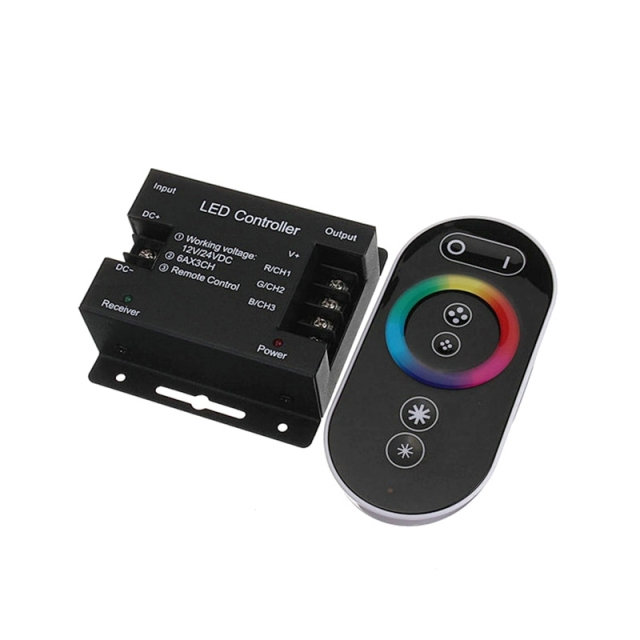

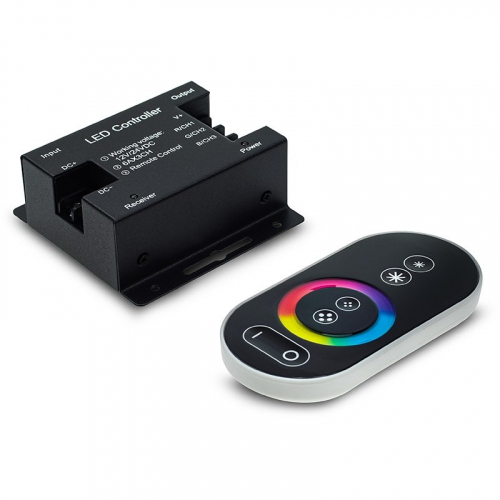

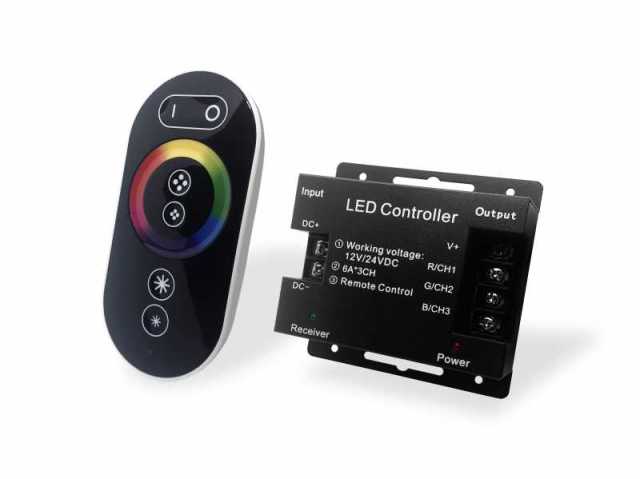

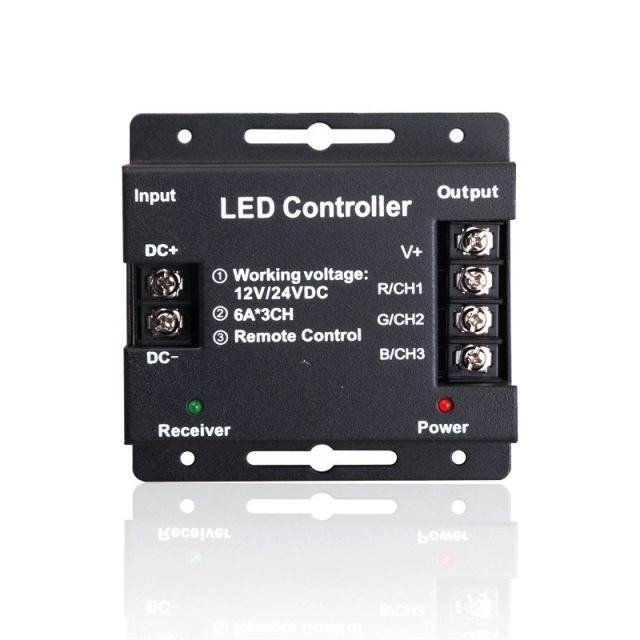

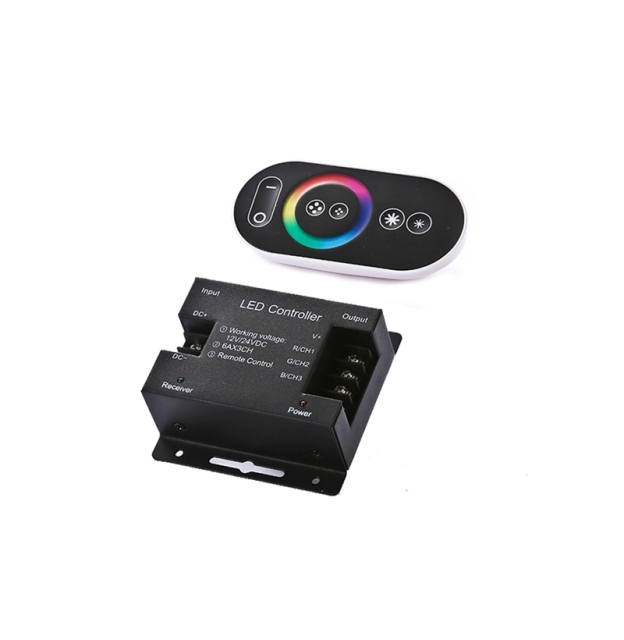

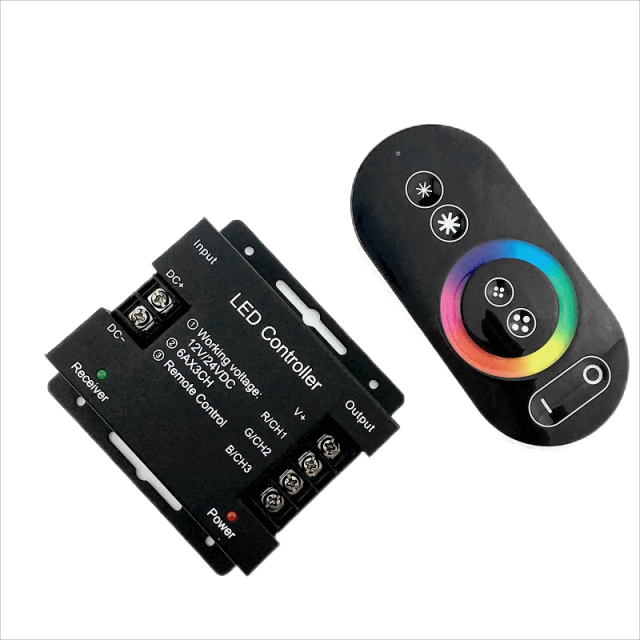

Rf Touch remote control RGB controller

No.RF-TC1

This RF touch remote control RGB controller adopted the advanced touch technology, Mainly used to control all kinds of constant volage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote control according to their preference .This controller is with power off memory function, next time to used it, will start with the model it save. Its built-in 7 kinds of static color, jump, fade, strobe,flow, automatic cycle and others effect. Agile wiring, easy connection and simple to used is the advantages of this representative controller.

Besides,This controller is with short circuit protection function,when meet short circuit, its green indicating light will be twinkling in a fixed frequency to indicate the user.what's more,Its with automatically restore function after short circuit protection,this personalized design can make the user experience another different sense.

RGB:

3 Channel

Description

Technical Parameters：

Controller:
Working temperature：-30℃~+60℃
Supply Voltage：DC5V/DC 12V-24V,
Output：3 channels N-MOS Drain open output
Connection mode：common anode
Static power consumption：<0.5W
Output current： 6A*3Ch=18A 6A(Each channel)
controller dimension：：L83 Χ W79 Χ H33 mm
Package size：L205ΧW135ΧH45mm
Net Weight：168g
Gross Weight：392g

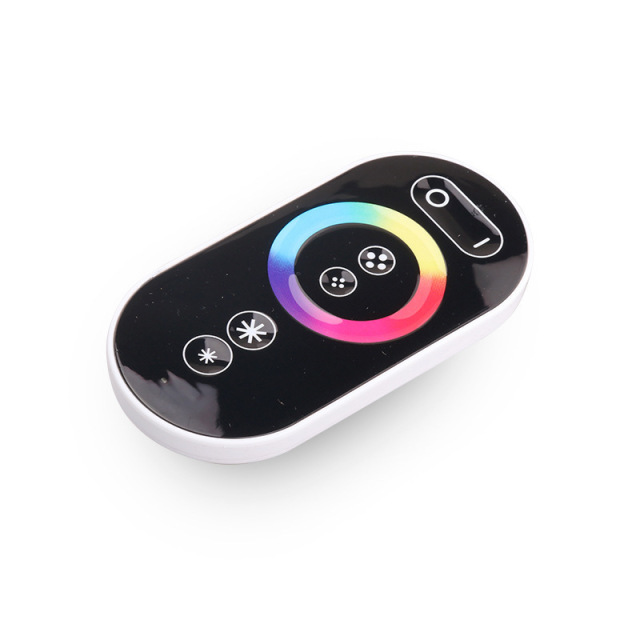

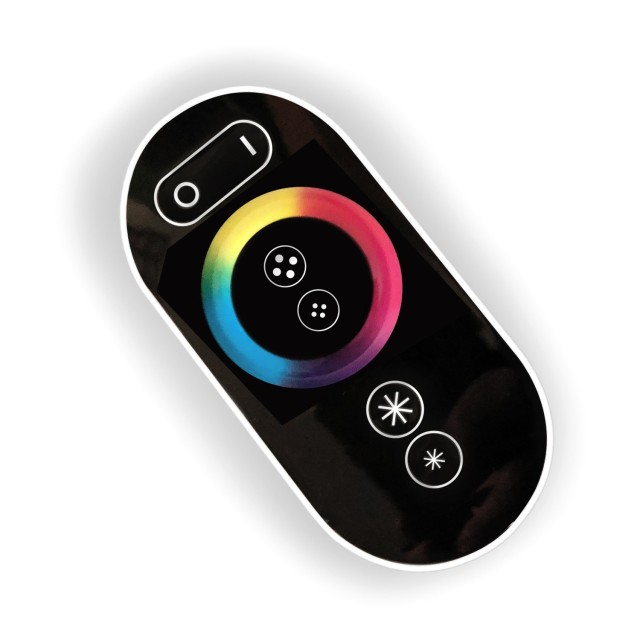

Remote Control：
Working temperature：-30℃~+60℃
Power supply mode：2pcs NO.7 Battery
Supply voltage：3V
Static power consumption：<0.09mW
Static current：10uA
Operating current：15mA
Remote-controlled distance：>20M
Stand-by time：6 months

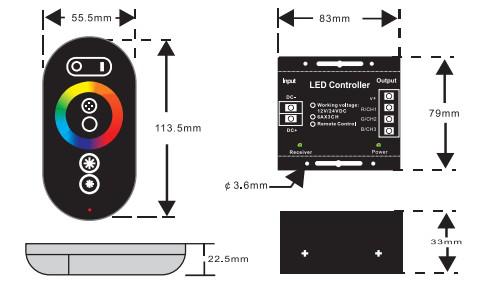

Controller Dimention：

External dimension:

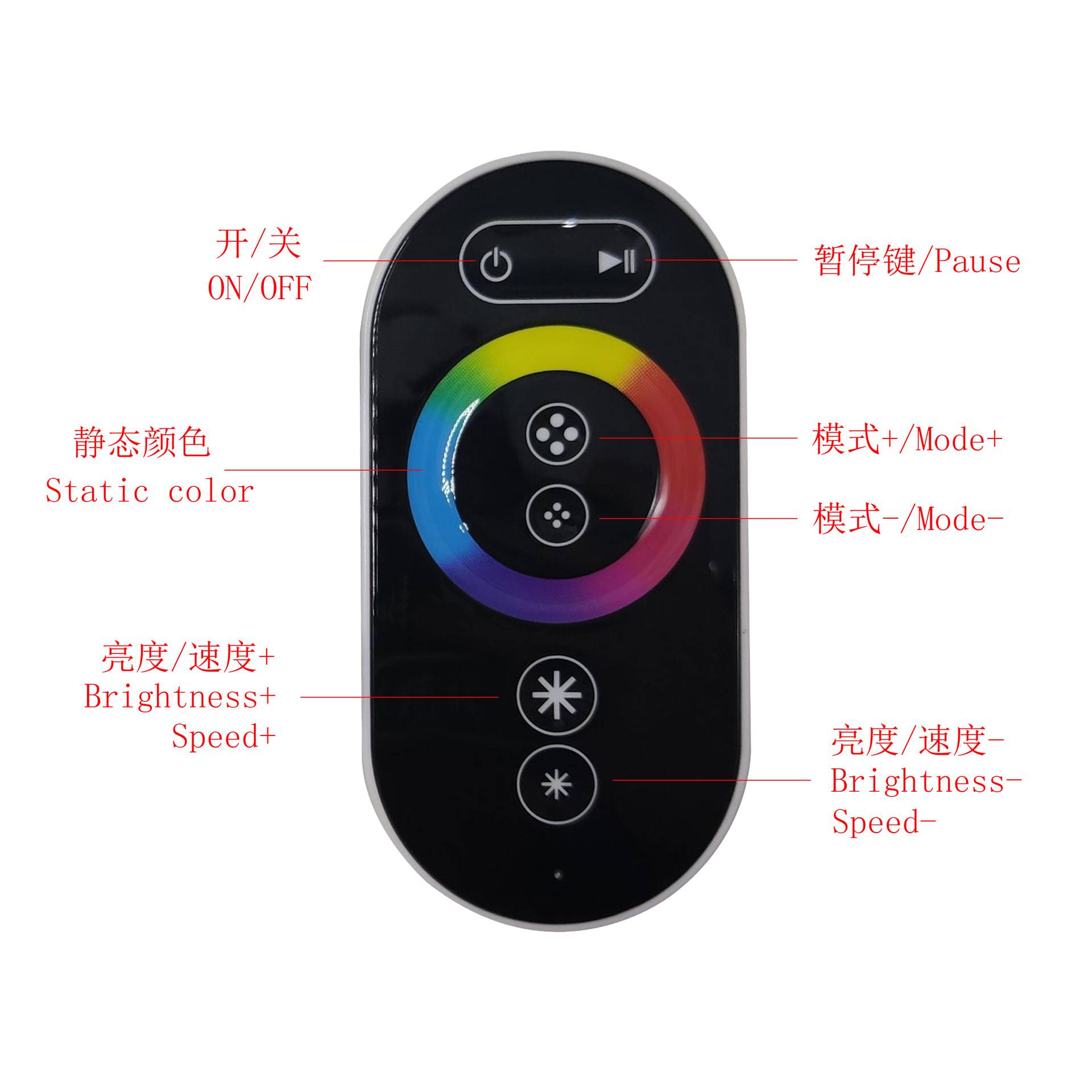

Remote control Function instruction:

Use the RF433Mhz radio frequency wireless to control, it no need to point at controller, can around the obstacles to control.
About 20-30m empty remote control distance.
Remote control has touch function.

Changing models are as below:

NO.	Model	Remarks	NO.	Model	Remarks
1	Static red	Brightness adjustable	10	Three Color fade	Speed, brightness are adjustable
2	Static green		11	Three color flow
3	Static blue		12	seven Color fade
4	Static yellow		13	Seven color flow
5	Static purple		14	Three-colors flash frequency
6	Static cyan		15	Seven-colors flash frequency
7	Static white		16	Three-colors blasting flash
8	Three color jump	Speed, brightness are adjustable	17	Seven color blasting flash
9	Seven color jump	Speed, brightness are adjustable	18	Automatic mode

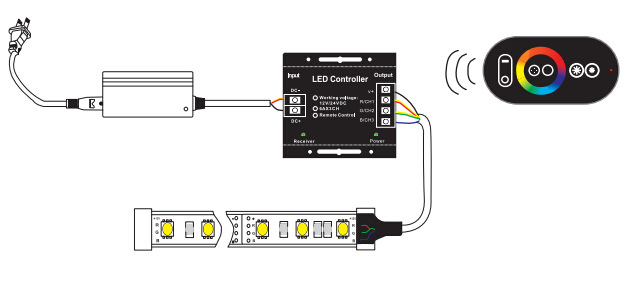

Connection description：

Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 6A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.

Application:
