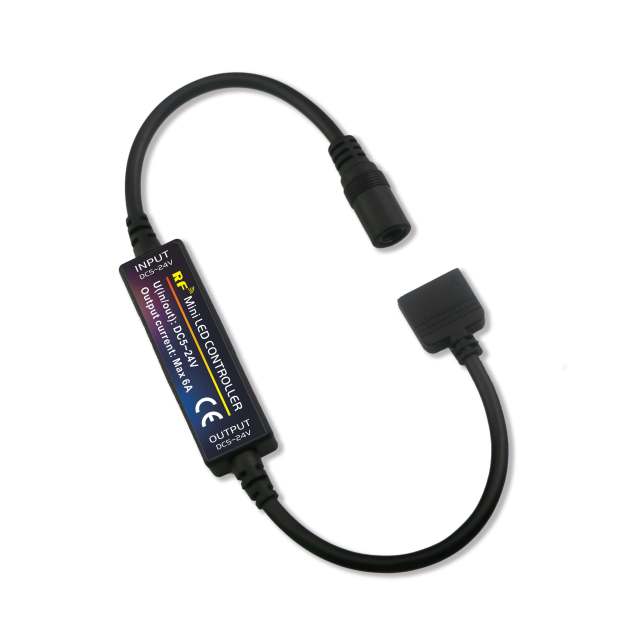

RF full touch RGB LED Controller

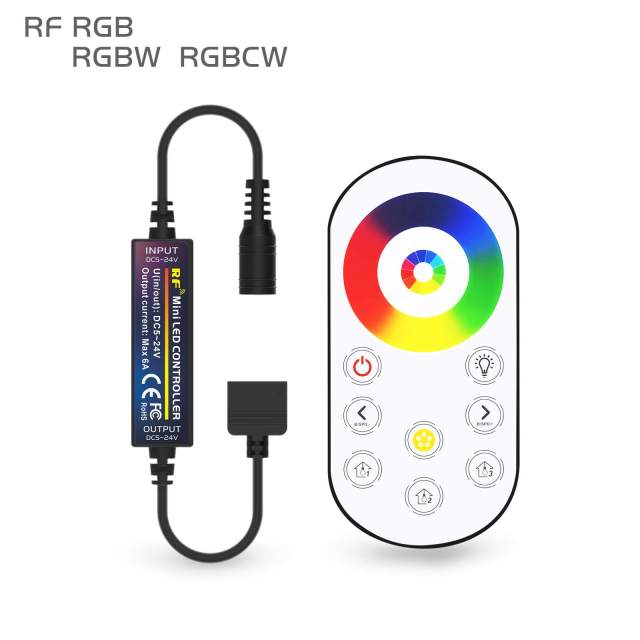

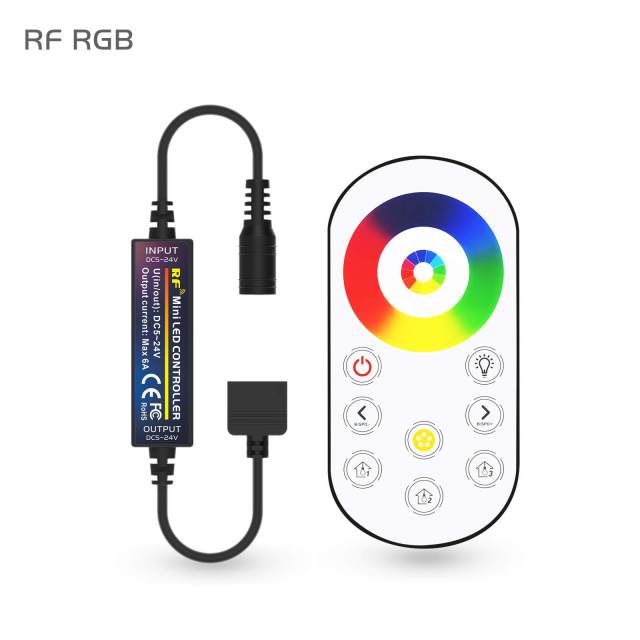

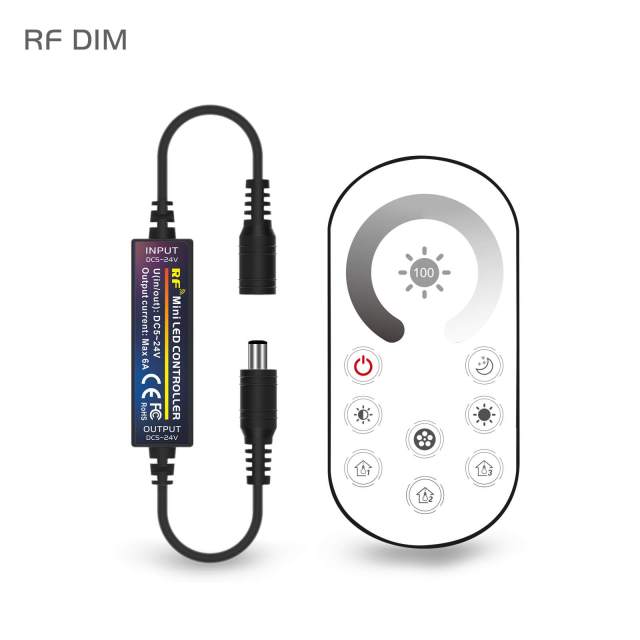

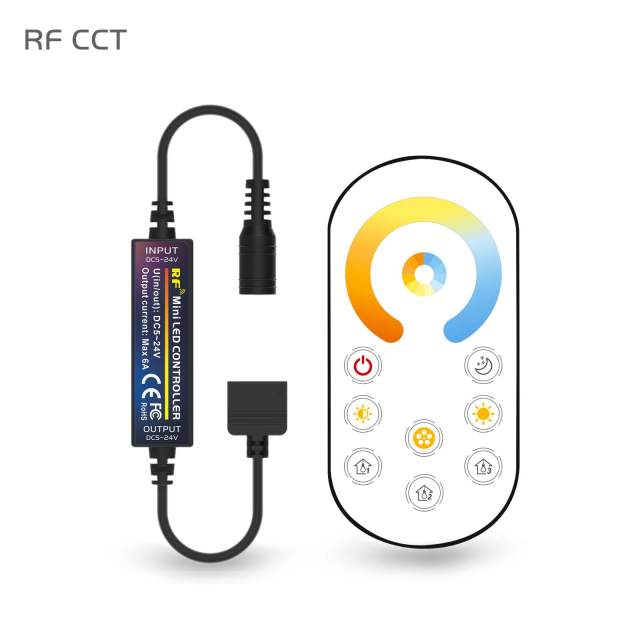

No.RF-TD1 (DIM) / TD2(CCT) / TD3(RGB) / TD4(RGBW)

This is a high-performance RF full touch remote controller, which is adopting the most advanced PWM control technology, With the technology of the RF high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc. It has the memory function. It is widely used in LED RGB strip light, LED module, LED lamp house and so on.

RF Touch remote controller has 5 types, which form a series. The products of this series can be used to control five types of light bars: Dimmer, color temperature, RGB, RGBW, RGB+CCT. It can realize fade, jump, fade in and fade out, flash, blasting flash etc. dynamic lighting effects according to customers' actual needs. And a variety of static colors can be chosen from.

DIM:

1 Channel

CCT:

2 Channel

RGB:

3 Channel

RGBW:

4 Channel

Description

Technical Parameters：

- - - - Product name: RF full touch remote controller

        Working temperature：-20-60℃

        Input voltage：DC5~24V

        Connection mode：Common anode

        controller size：L55.7×W16.6×H10.7mm

        Net weight：50g

        Gross weight：56g

        Static power consumption：<0.5W

        Output current：<2A/CH max:6A

        Output power: Max: 5V:<30W,12V:<72W, 24V:<144W

        Output control: DIM/CCT/RGB/RGBW/ LED lamps

        Certification: CE ROHS

Controller & Remote fuction instruction：

Connection description：

Application:

Attention:

1.How to save Scene ?

First, choose the color or modes, then long press the Scene DIY 1/2/3 button, the light flashes means scene save successfully. (Can open the scene when the remote is in shut-down state.

2.Controller’s input voltage is DC5~24V, never connect to others or AC220V, Please do not overload, the total max output current is 6A;

Before using the infrared remote, the insulating filmshould removed.
Please don’t reverse the power input connection ofboth cathode and anode, please switch on again onlywhen it is in right connection and no short circuit.
Please power off the device if you don’t use it for aquit long time, don’t place in high dust, high temperatureenvironment.
