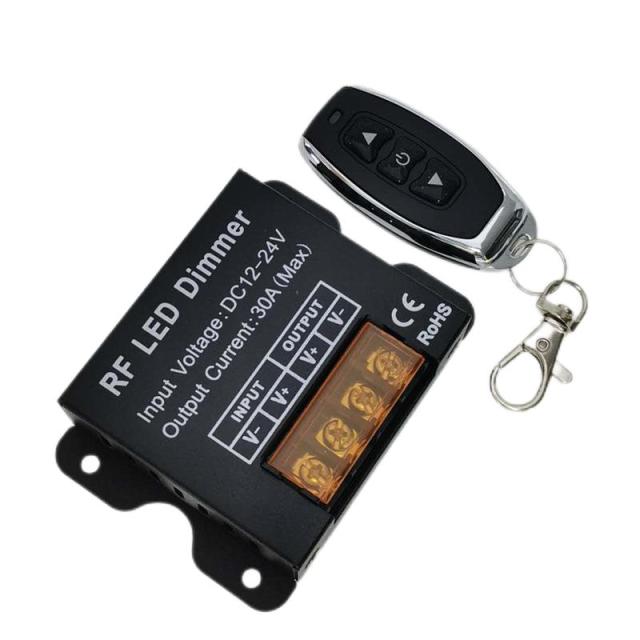

RF 3 Keys led dimmer 30A

No.RF-TK2

This RF 3 Keys 30A Single color led dimmer adopt the RF wireless remote control,can adjust brightness infinitely to change the brightness. User could adjust the light to the appropriate lighting brightness in accordance with the 3 keys remote from 1%~100%.

Dimmer:
1 Channel
  • RF 3 Keys led dimmer 30A
  • RF 3 Keys led dimmer 30A
  • RF 3 Keys led dimmer 30A
  • RF 3 Keys led dimmer 30A
Description

Technical Parameters:

● Working temperature:-20-60℃
● Supply voltage:DC12-24V
● Output:1 channel
● Connection mode:Common anode
● Controller size:L85×W66×H20mm
● Package size:L88XW66XH40mm
● Net weight:144g
● Gross weight:156g
● Static power consumption:<1W
● Output current:<30A
● Output power:12V<360W,24V<720W
● Remote type: RF 433M Remote

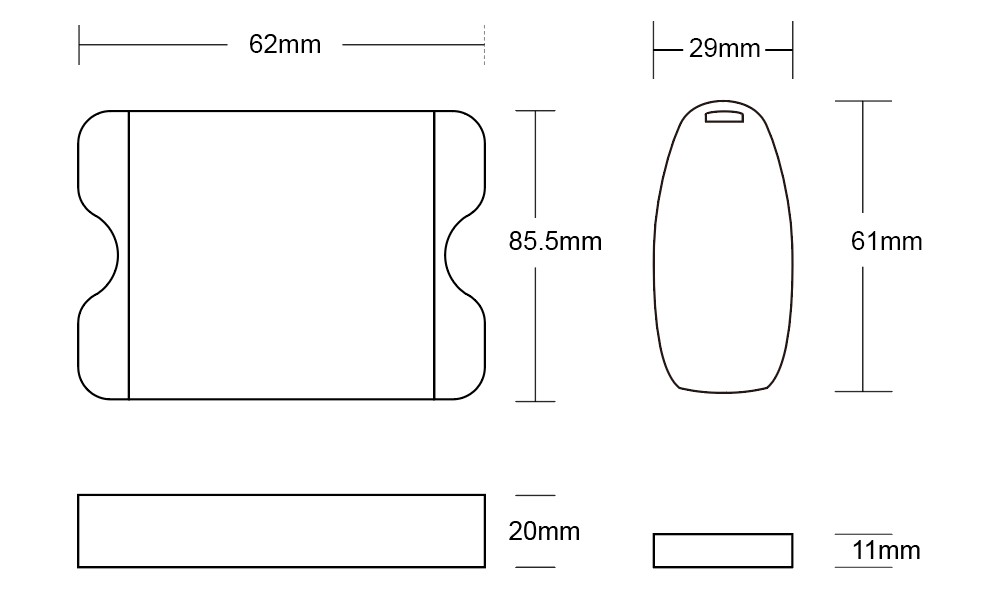

Controller Dimention:

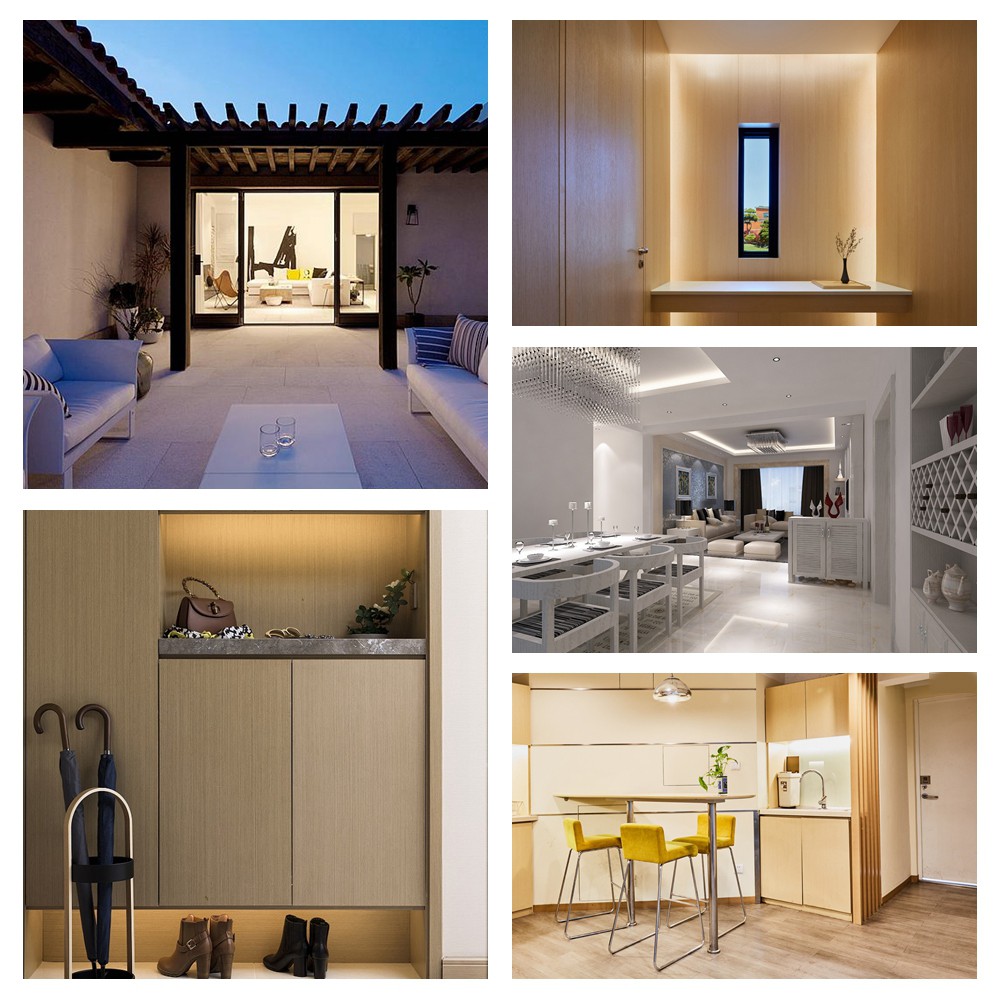

Application:

Attention:

1、This products Input voltage is DC5V or 12~24V, other input voltage are not allowed.

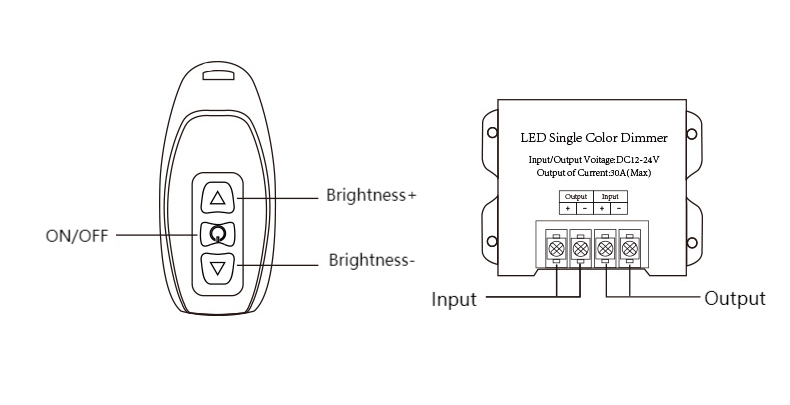

2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
3、Overload are prohibited.
