RF 2.4G CCT Touch remote controller

RF 2.4G CCT LED touch remote controller, which is adopting the most advanced PWM control technology, controlling all color temperature LED products with Four lines and three circuits( common anode),owning 14 automatic changing modes to choose.
Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). It is widely used in LED RGB strip light, LED module, LED lamp house and so on. With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc.

Color:

CCT

Description

Technical Parameters：

Product name: RF 2.4G CCT LED touch remote controller
Model No.：RF-2.4G-02
Working temperature：-20-60℃
0utput: 3 circuit
Input voltage：DC12-24V
Connection mode：Common anode
Controller size： L85×W45×H22mm
Packing size： L12×W13×H3cm
Net weight：85g
Gross weight：125g
Static power consumption：<1W
Output current：<6A/CH
Output power: Max:12V:<216W, 24V:<432W

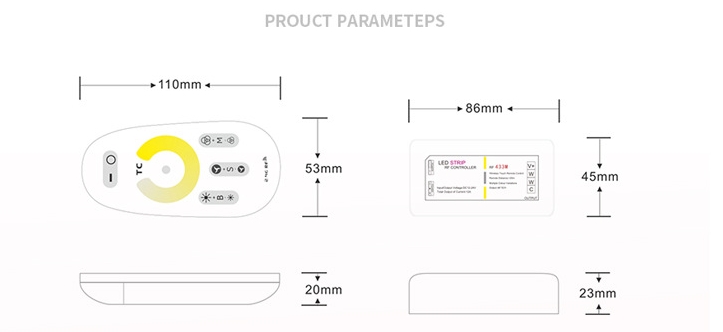

Controller Dimention：

Function information:

Use the 2.4G radio frequency wireless to control, it no need to point at controller, can around the obstacles to control.
About 20-30m empty remote control distance.
Remote control has touch function.

Control methods:

- Connect the load line firstly, then connect the power line; make sure all lines no short circuit before power on.
- When it’s ON state, touch ring can become quick and smooth changes on color temperature,

“mode+” and “mode-“ have 14 different mode choices, modes details as below:

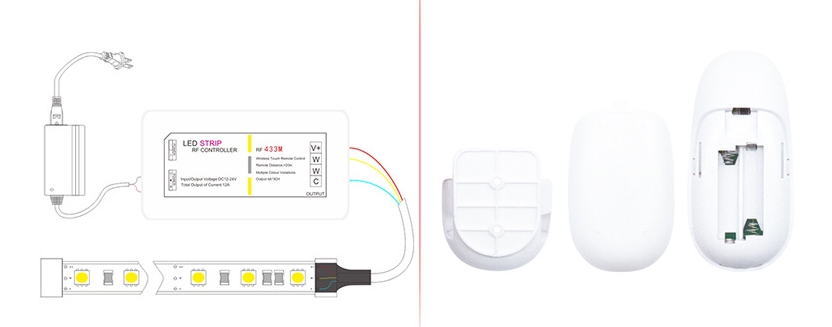

Connection description：

Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 6A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.

Application:
