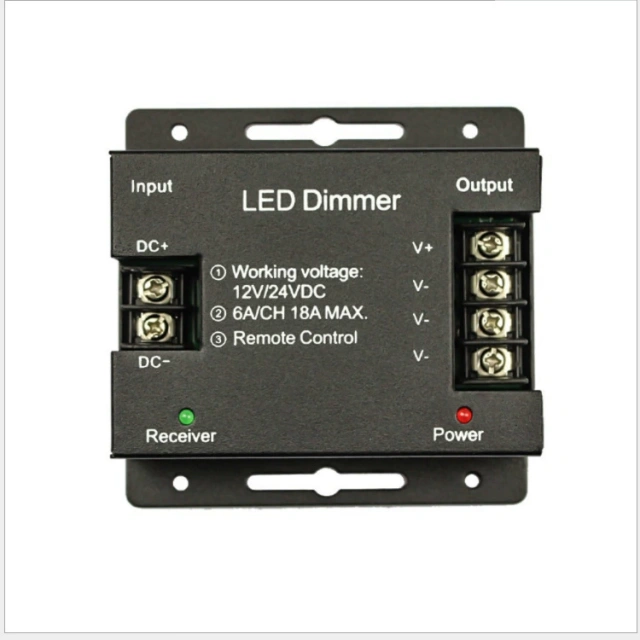

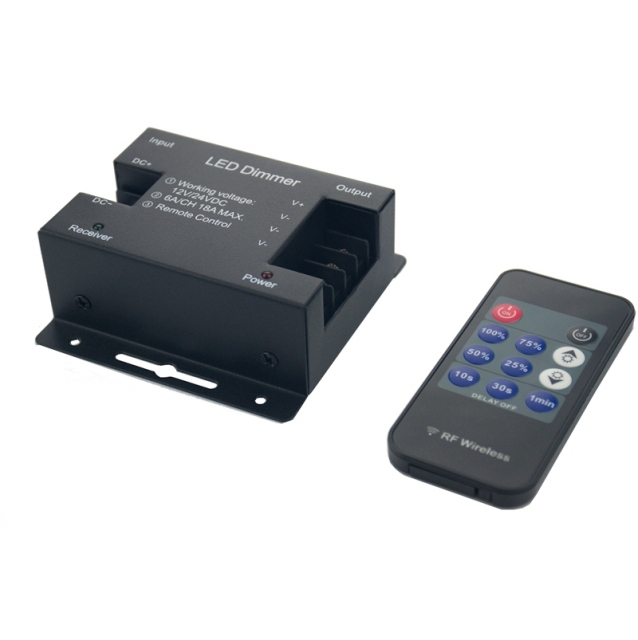

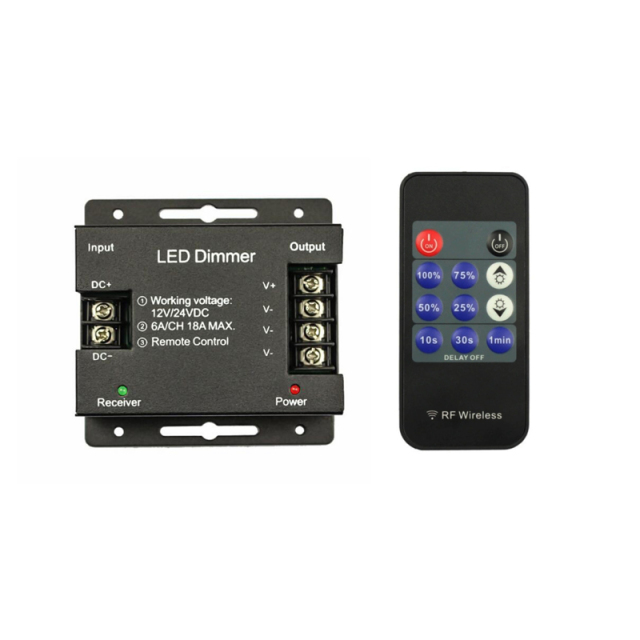

Iron shell RF 11 Keys led dimmer

No.RF-TK6

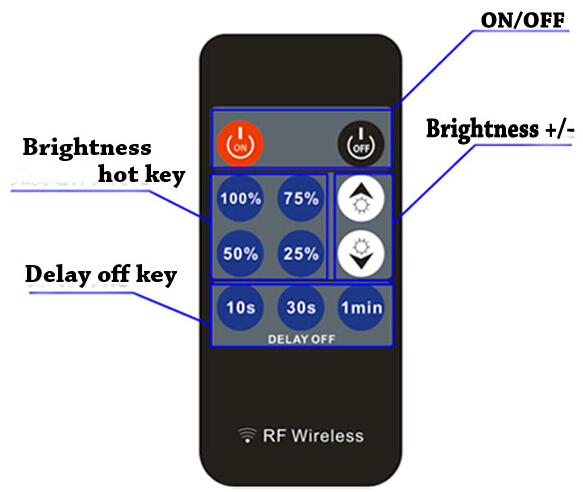

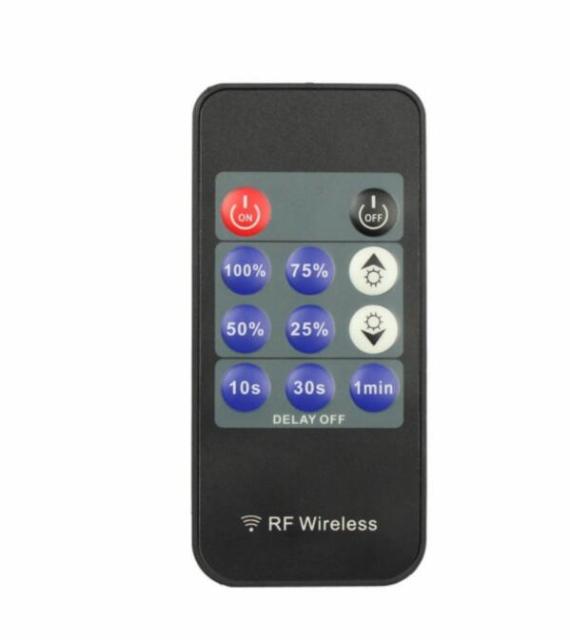

This Iron shell RF 11 Keys Single color led dimmer adopt the RF wireless remote control,can adjust brightness infinitely to change the brightness. User could adjust the light to the appropriate lighting brightness in accordance with the 25%,50%,75%,100% brightness hot keys easily..what’s more, its with the 10 Seconds/30 second/1 minute delay off function,this can realize more humanized to used.

Dimmer:
3 Channel (Same function)
  • Iron shell RF 11 Keys led dimmer
  • Iron shell RF 11 Keys led dimmer
  • Iron shell RF 11 Keys led dimmer
  • Iron shell RF 11 Keys led dimmer
  • Iron shell RF 11 Keys led dimmer
  • Iron shell RF 11 Keys led dimmer
Description

Technical Parameters:

    • Supply voltage:DC5V,12V~24V optional
    • Output:1 channel
    • Connection mode:Common anode
    • Controller size:L115×W56×H34mm
    • Package size:L120xW84xH45mm
    • Net weight:80g
    • Gross weight:108g
    • Static power consumption:<1W
    • Output current:<8A
    • Output power:5V:<40W;12V:< 96W;24V:<192W

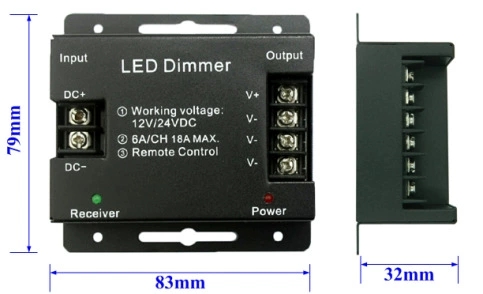

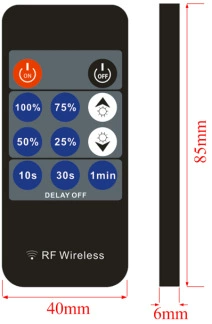

Controller Dimention:

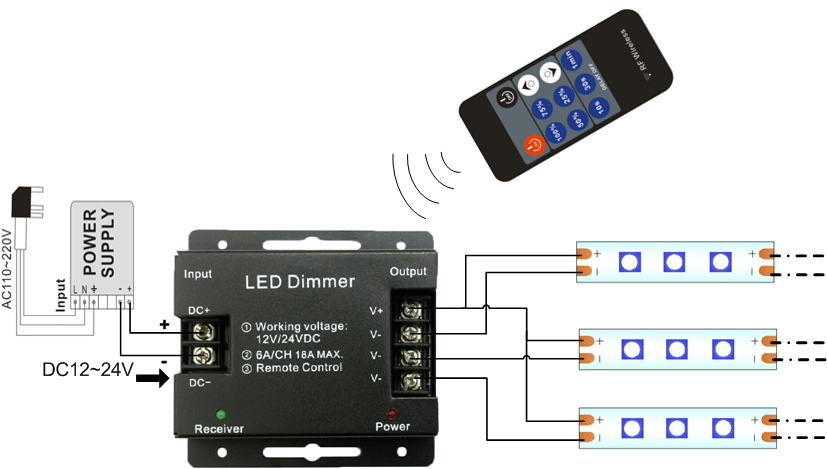

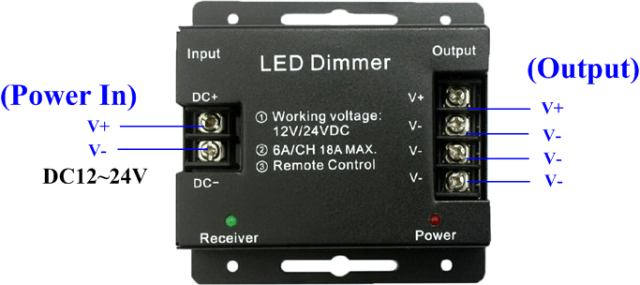

Connection description



Application:



Attention:

1、This products Input voltage is DC5V or 12~24V, other input voltage are not allowed.
2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
3、Overload are prohibited.
