Technical Parameters：
- Working temperature: -20 ~ 60°C
- Supply voltage: DC5V~24V
- Current: <60mA
- External dimension: L122 x W71 x H24mm
- Packing size: L137 x W80 x H55mm
- Net weigh: 190g
- Gross weight: 226g
- Effects model: 268 modes
- Maximum control points: 1024 (Low-speed) points, 2048 (High-speed) points
- Controlled IC Model: Such as the TM16726,TM2801,TM8806,WS2811, UCS1903 etc
- Remote: RF433Mhz radio frequency wireless
Connection description:
Power input interface (port1):
Adopt conventional power transposon as a DC power input interface.
Power input interface (port2):
Adopt male and female connector with screw.
Load output interface:Adopt male and female connector with screw.
Synchronization interface:
Adopt Standard network line interface.
Direction for use:
●Connect the load wire at first, following by the power wire; Please ensure NO short circuit between connecting wire before you turn on the power. Then set the steps as follows.
●Press the "On / off" button to turn off controller before setting the menu.
●Press the “up”, “down” button together once, and LED would be bright at this moment. Then press the "Mode / Speed" button to setup menu.
●Firstly, press button “Mode/Speed” is for “Control points setting”. The LED displaying “200” is the number of control points. To plus or minus the number by pressing the button “up”or “down” (Long pressing can adjust quickly). The factory default is 200, the max control points are 2048 pcs.
●Secondly, press button ”Mode/Speed” is for”Brightness setting”. The LED displaying”L 255” is the current brightness. To adjust the brightness by pressing the the button “Up”or “Down” (Long pressing can adjust quickly). The factory default is 255, available brightness range is 2 to 255.
●Thirdly, press button ”Mode/Speed” is for “ID model setting”. The LED displaying”1903” is the current ID model. To select the ID model by press button”Up” or “Down”. Followed by 1903, 6803, 8803, 1914, 2801. The factory default is 1903
●Fourthly, press button ”Mode/Speed” is for “Host control or Sub control setting”. The LED displaying “Sub” means it is sub control state currently, To select control state by pressing “Up” or “Down”. When LED displays “Host”, it is host control.
●After setting well, press button "On /Off" to save and exit.

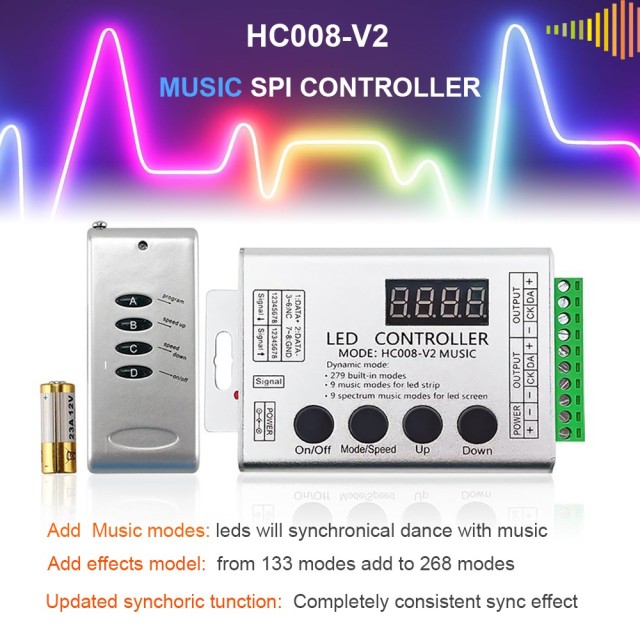

●There are 4 buttons on the controller panel, function of each button as below:
- On/off：It can turn on or turn off the output..
- Mode/Speed/Music：Mode adjustment / speed adjustment / Music function switch (The first LED displays “H” for model adjustment, displays “S” for the speed adjustment, displays”U” for the music mode adjustment . )
- UP：Mode+/Speed+/Music+
- Down：Mode-/Speed-/Music-
- UP：Long press this button for 2 seconds when it is on Music mode adjustment, it is go to sensitivity increase with the LED displaying “OL” in the first two digits(totally 9 levels of sensitivity). It will turn off this function after 5 seconds without pressing.
- Down: Long press this button for 2 seconds when it is on Music mode adjustment, it is go to sensitivity decrease with the LED displaying “OL” in the first two digits(totally 9 levels of sensitivity). It will turn off this function after 5 seconds without pressing.
The wireless remote control has 4keys in total, function of each key as below:
A: Mode adjustment / speed adjustment / Music function switch
B: Mode+/Speed+/Music+
C: Mode-/Speed-/Music-
D: Turn on/Tun off
Synchronous controller system description
Synchronous control system can be made of any number of controller connections. Each of the sub-controller would follow to the first master controller to achieve a permanent synchronous change. And there is not delay.
After connecting the wiring diagram, the sub-controller need not be set. It will be in accordance with the master to controlling the speed and mode change. (That would be not synchronous when powering. You could close and open to be synchronous) When master is working, and the sub-control working well, the green signal light of sub-control would flick. The digital LED display the mode in operation.
Connection description：
Attention:
1. This products Input voltage is DC5V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
Application:
Adopt conventional power transposon as a DC power input interface.
Adopt male and female connector with screw.
Adopt Standard network line interface.
