Technical Parameters：
- Working temperature: -20 ~ 60°C
- Supply voltage: DC5V~24V
- Current: <60mA
- External dimension: L122 x W71 x H24mm
- Packing size: L137 x W80 x H55mm
- Net weigh: 180g
- Gross weight: 270g
- Effects model: 133
- Maximum control points: 1024 (Low-speed) points, 2048 (High-speed) points
- Controlled IC Model: Such as the TM16726,TM2801,TM8806,WS2811, UCS1903 etc
- Remote: RF433Mhz radio frequency wireless
Connection description:
Power input interface (port1):
Adopt conventional power transposon as a DC power input interface.
Power input interface (port2):
Adopt male and female connector with screw.
Load output interface:Adopt male and female connector with screw.
Synchronization interface:
Adopt Standard network line interface.
Direction for use:
●Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power. Then set the steps as follows.
●Press the "On / off" button to take the controller off before setting the menu.
●Press the “up”, “down” button one time at the time, and LED would be bright at this moment. Then press the "Mode / Speed" button to get into the menu settings screen.
●The first setting screen is for “High-speed, low-speed settings”, and the LED would display "S-HI" or "S-LO". Then press the “up” and “down” button to select the mode. (If the IC on the light bar is high-speed mode, you should choose “S-HI”, and choose “S-HI” when low-speed.) The factory default is for the high-speed mode.
●Continue to press the "Mode / Speed" button to enter the second screen-“Control points setting”. The LED display 4-digit is for the number of control points. To plus or minus the number by pressing the “up” and “down” button (Long pressing can adjust quickly). The factory default is for 50.
●After setting well, press the "On / off" button to save and exit.

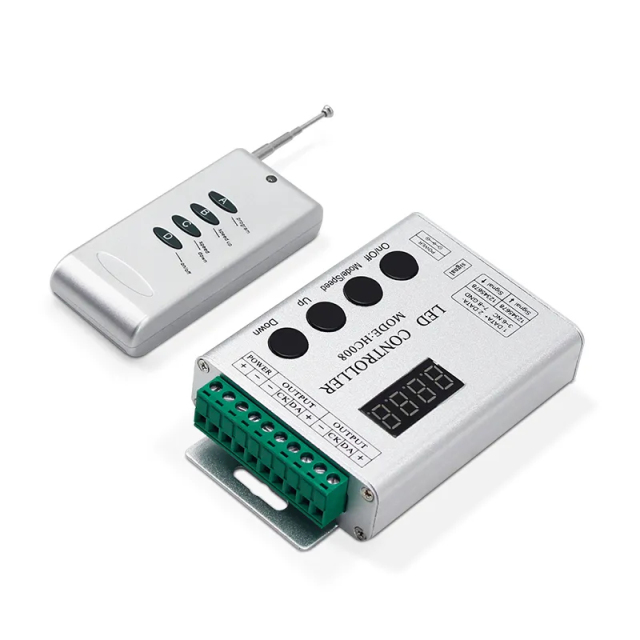

●There are 4 buttons in total on the control panel, function of each button as below:
-
On/off：It canturn on or turn off the output..
-
Mode/Speed ：Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
-
UP：Mode+/Speed+ button. When in mode regulatorfunction, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
-
DOWN：Mode-/Speed- button. When in mode regulatorfunction, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
-
Remarks:When power the controller, the red indicator light will be light up, and the green indicator light will be flash when press the button each time.

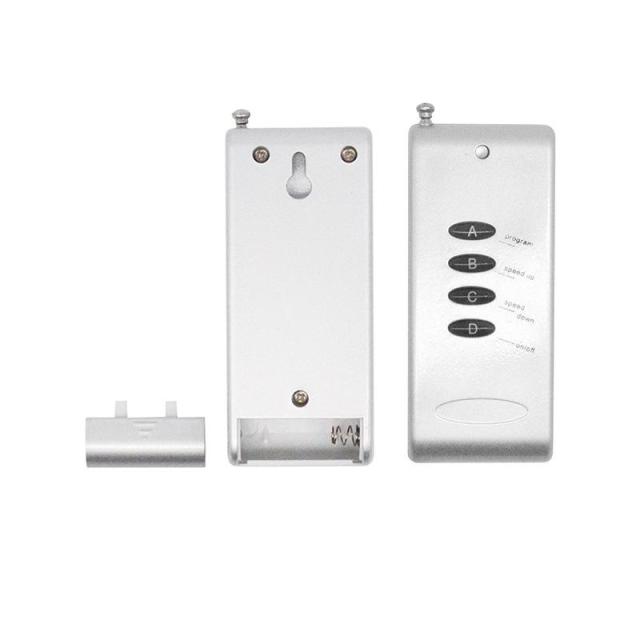

- Adopt wireless control method, 4keys in total, function of each keyas below:：
- A: Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
- B：Mode+/Speed+ button. When in mode regulatorfunction, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
- C：Mode-/Speed- button. When in mode regulatorfunction, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
- D：On/Off button: It can open or close output.
- Remarks:When power the controller, the red indicator light will be light up, and the green indicator light will be flash when press the button each time.
- Synchronous controller system description
Synchronous control system can be made of any number of controller connections. Each of the sub-controller would follow to the first master controller to achieve a permanent synchronous change. And there is not delay.
After connecting the wiring diagram, the sub-controller need not be set. It will be in accordance with the master to controlling the speed and mode change. (That would be not synchronous when powering. You could close and open to be synchronous) When master is working, and the sub-control working well, the green signal light of sub-control would flick. The digital LED display the mode in operation.
Connection description：
Attention:
1. This products Input voltage is DC5V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
Application:
Adopt conventional power transposon as a DC power input interface.
Adopt male and female connector with screw.
Adopt Standard network line interface.
