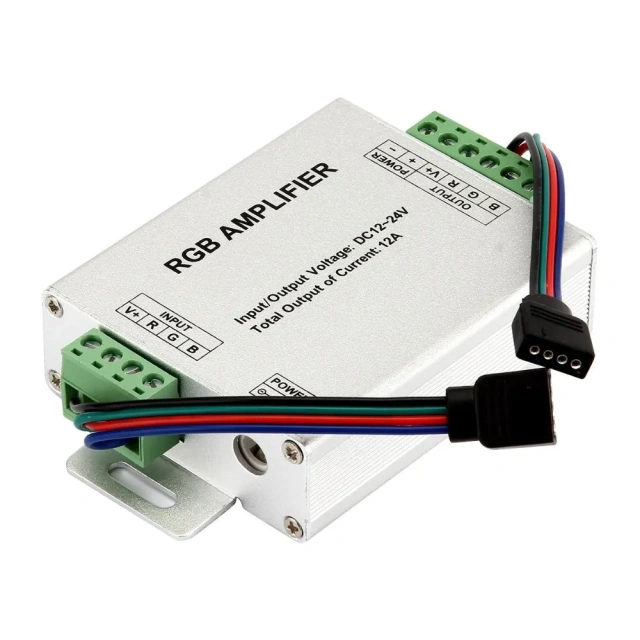

Aluminum Shell RGB Amplifier-- DC12~24V (12A/24A)

Technical Parameters：

● Working temperature：-20-60℃
● Input voltage：DC12~24V
● Output：3 circuit
● Connection mode：Common anode
● product’s size：L105×W65×H23mm
● package size：L115×W70×H35mm
● Net weight：110g
● Gross weight：125g
● Static power consumption：<1W
● Output current：<4A/CH (8A/ch For optional)
● Output power： 12V/4A < 144W；12V/8A< 288W
                               24V/4A< 288W；24V/8A< 576W.
● Carton size: 42*29*30CM  100pcs 11.5 KG/carton

Controller Dimention：

External dimension:

Direction for use
Connection description:

Power input interface (port1):
Adopt conventional power transposon as a DC power input interface.

Power input interface (port2):

Adopt male and female connector with screw.

Load output interface:
Adopt male and female connector with screw.

Connect the input and output wire in sequence according to the specification one the label of the amplifier,
make sure that no short circuit phenomenon,then connect the amplifier to the DC12V/24V power supply , and used with the led light , the wiring diagram are as follows:

Connection description：

Typical Applications:

application circuit 1——serial connection，used one power supply：

application circuit 2——serial connection，used two or more power supply：

application circuit 3——parallel connection，used one power supply：

application circuit 4——parallel connection，used two or more power supply:

Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 4A/CH or 8A/CH.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
