Technical Parameters：

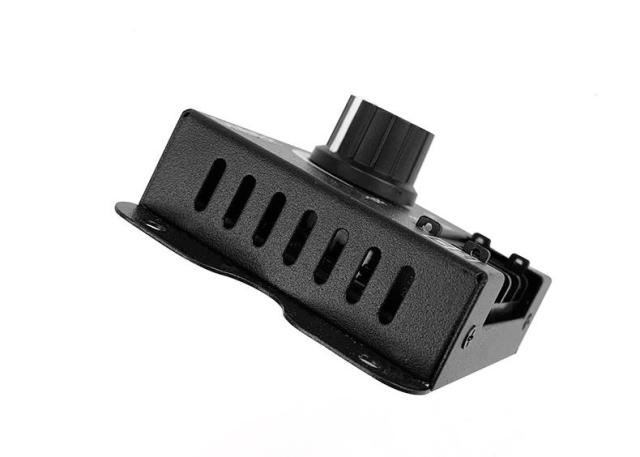

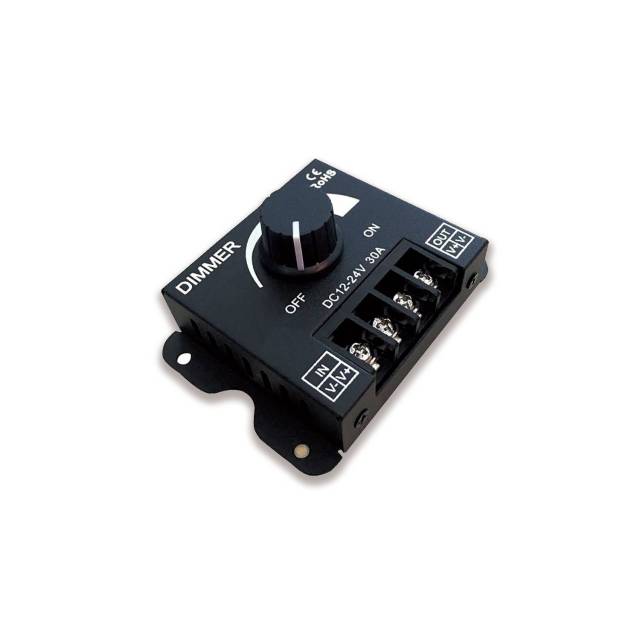

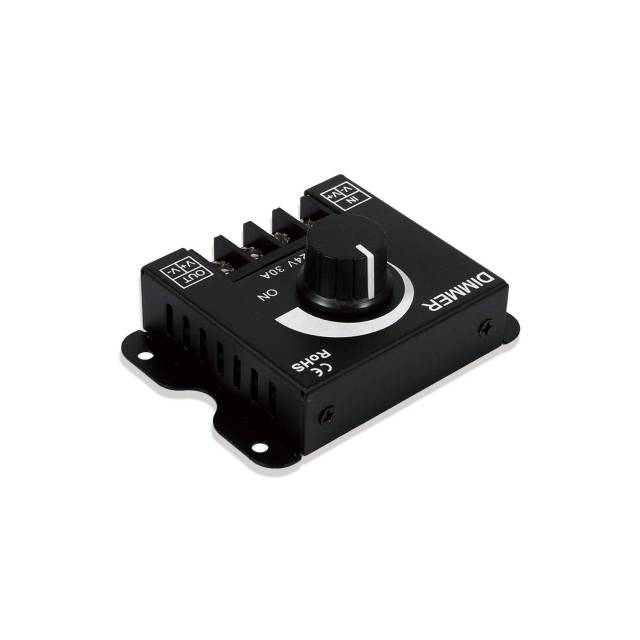

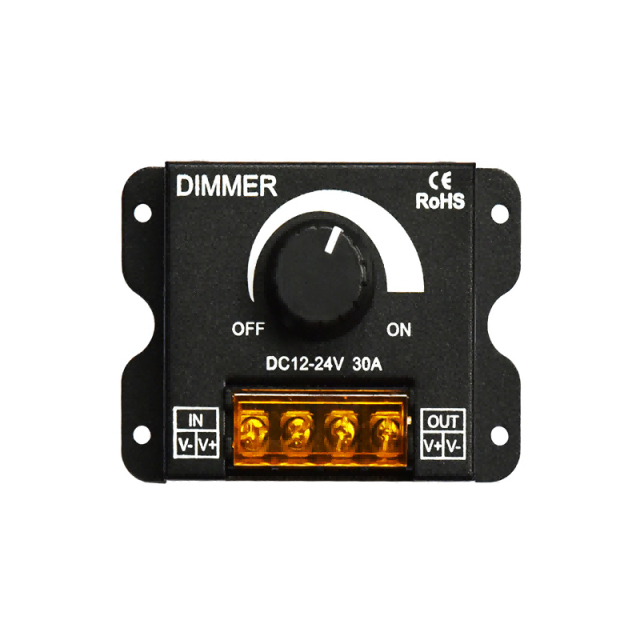

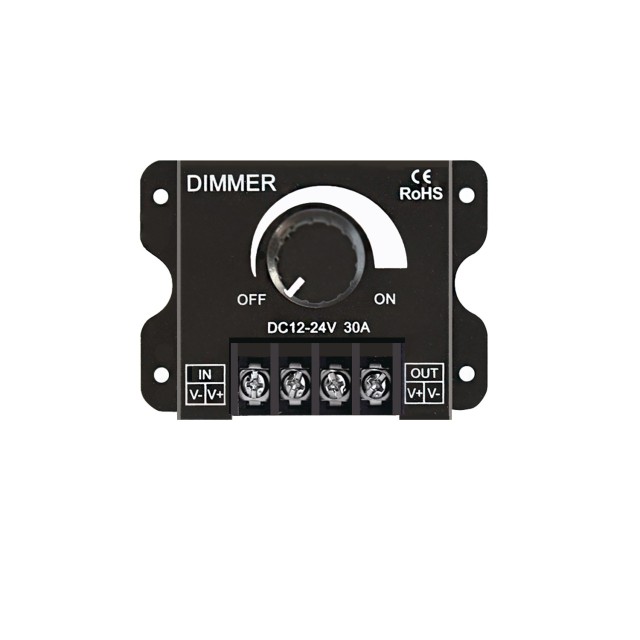

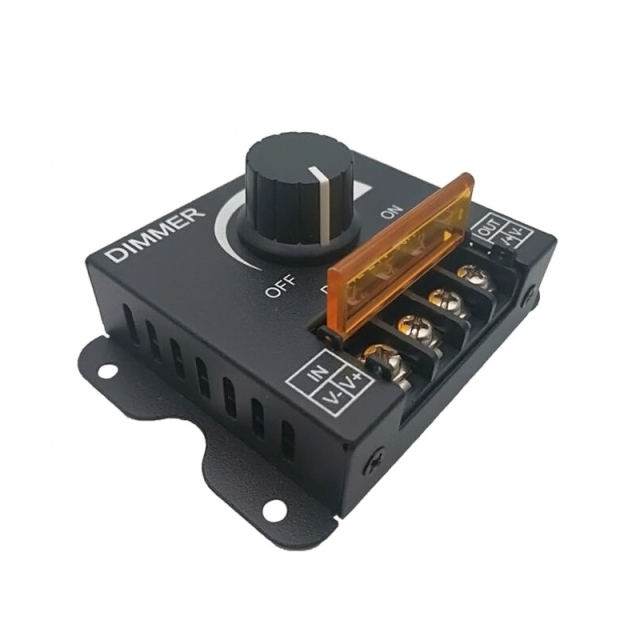

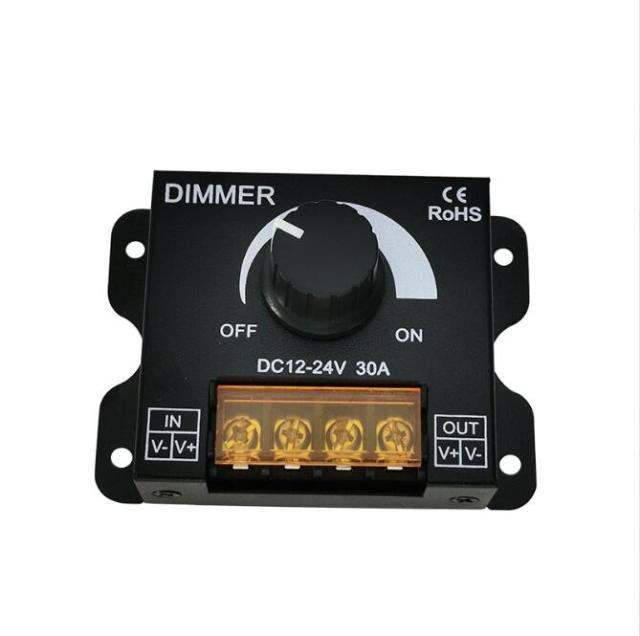

- Product name: 30A knob Dimmer
- Model No.：D03
- Working temperature：-20-60℃
- 0utput: 2 channel (Same)
- Input voltage：DC12-24V
- Connection mode：Common anode
- controller size： L86*W62*H36 mm
- Packing size: L92 xW64xH40mm
- Net weight：98g
- Gross weight：113g
- Static power consumption：<0.5W
- Output current：<30A
- Output power: Max:12V:<360W, 24V:<720W

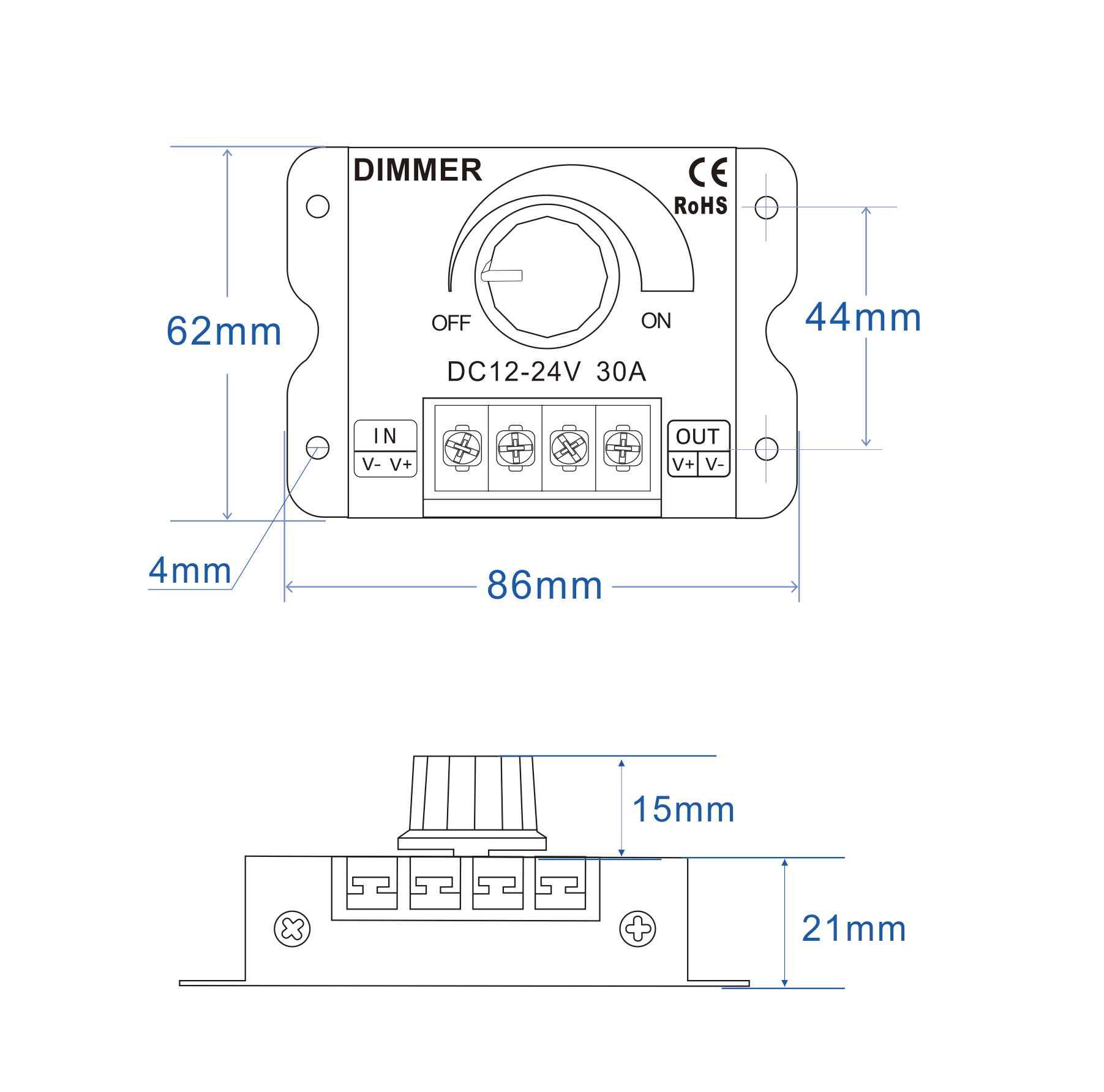

Controller Dimention：
- Connect the load wire at first,following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
- Adopt rotary button,its function as follows:
Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.

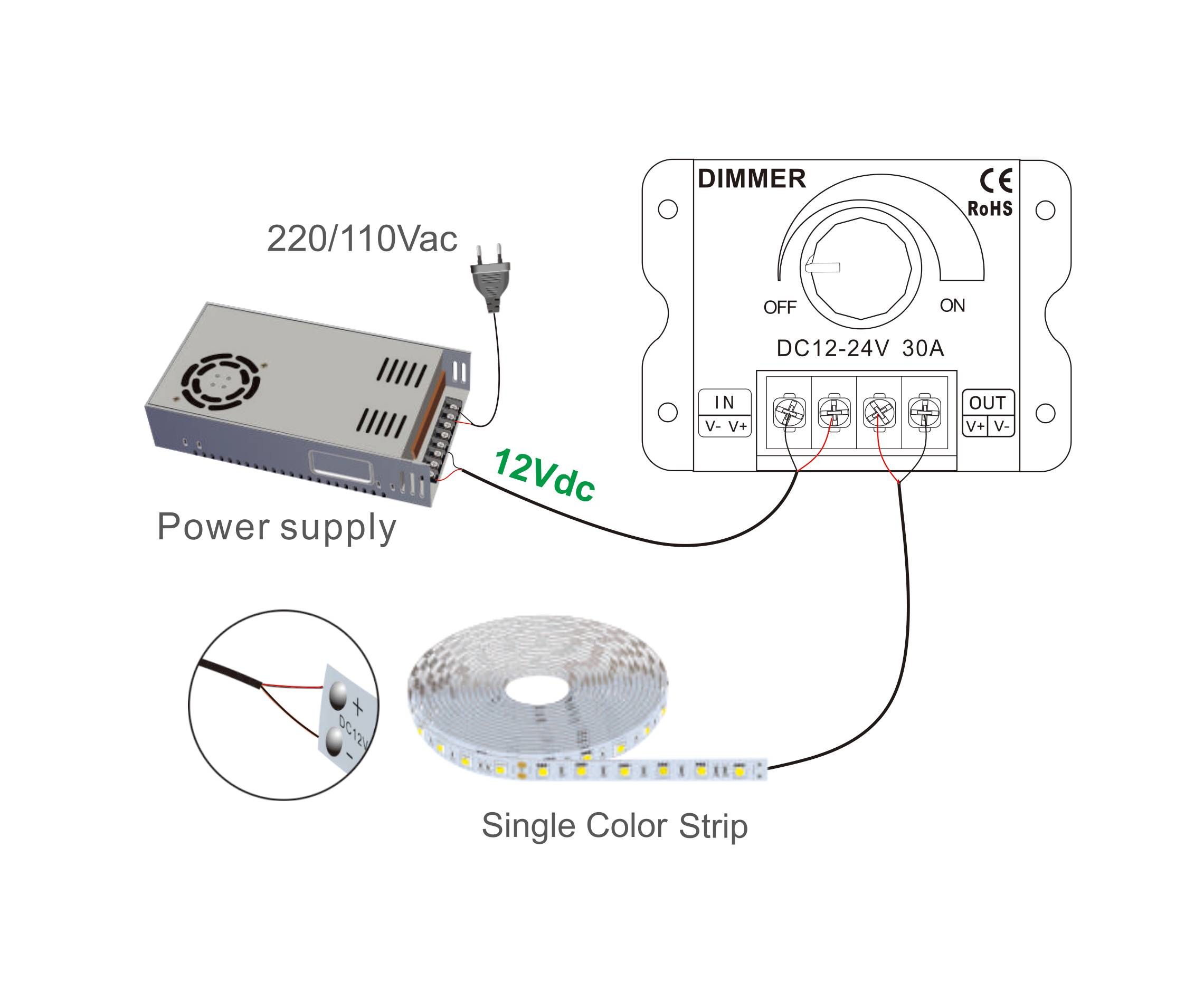

Connection description：
Application:
Attention:
1. This products Input voltage is DC12V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3. Please do not overload, the total max output current is 30A.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
