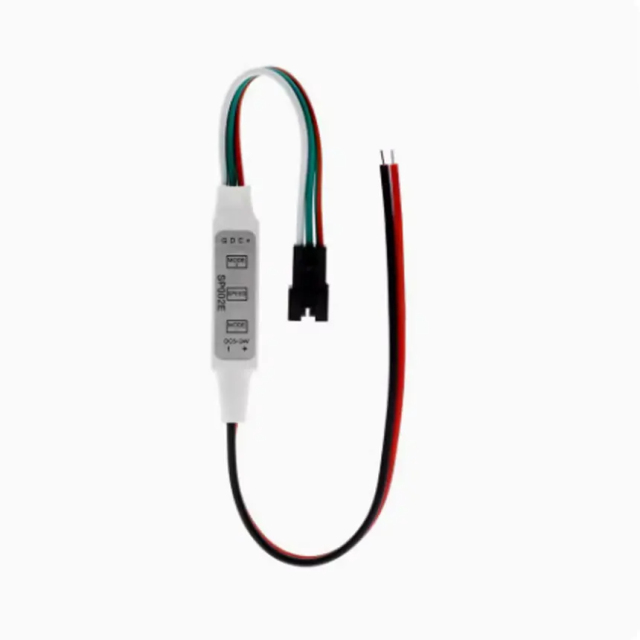

3 keys mini SPI pixel controller --- DC5-24V WS2801 WS2811, LPD6803, TM1809, UCS1903

No.SP002E

Features:

3 keys mini SPI pixel controller support common single wire and double wire LED driver IC on the market; With 76 kinds of pattern effects, up to 600 pixels, small size, powerful, can adjust light and speed; With power memory ability. There are a variety of modes: static color, jump, gradient, flash, automatic loop, etc. The static and dynamic modes are quickly switched separately for easy operation. Widely used in the RGB LED lights, LED lights with the stage, home decoration products such as lighting control, such as WS2801 WS2811, LPD6803, LPD8806, TM1809, UCS1903,UCS9812,APA102,APA104 and other chips can allow customers to experience the gorgeous colors brought by various modes, and have the advantages of low price, convenient connection, simple use and so on.

1.Works stably, easy to use and connection is simple;

2.Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC;

3.With 76 kinds of patterns,which are vivid and beautiful;

4.Can control up to 600 pixels;

5.Preventing reverse connection of power supply.

Input type:

Red and Black wire

DC input

USB Connector

Description

Technical Parameters：

- - Working temperature: -20-60℃
  - Supply voltage: DC5V-24V (wide voltage)
  - Output: 3 channels
  - Net weight: 10g
  - Product size: L42*W12*H3 mm
  - Static power consumption: less than 1W
  - Maximum load current: < 6A
  - Maximum control points: 600 points
  - Operation mode: 3-key multi-function controller
  - Output power: 5V<30W, 12V<72W, 24V<144W
  - Distance between the controller and the first point of the light strip: <=10 meters
  - Effect mode: 76 kinds, covering most of the magic controller effects on the market, water steady on.
  - Currently supports IC: WS2801, WS2811, LPD6803, LPD8806, TM1809, UCS1903, UCS9812, APA102, APA104;Support custom other IC;

Cautions: Please make sure the power supply voltage is match to your controller before you power it.

Connection description:

USB connect"

Functions Of Keys:

MODE+ Switching patterns forwardly
SPEED Switching speed
MODE- Switching patterns backwardly
MODE+ AND MODE-
Pressing MODE+ and MODE- at the same time and release at the same time into AUTO Mode

Attention:

1. This products Input voltage is DC5V-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
4. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
