Technical Parameters：
Model No.: GP-RGB

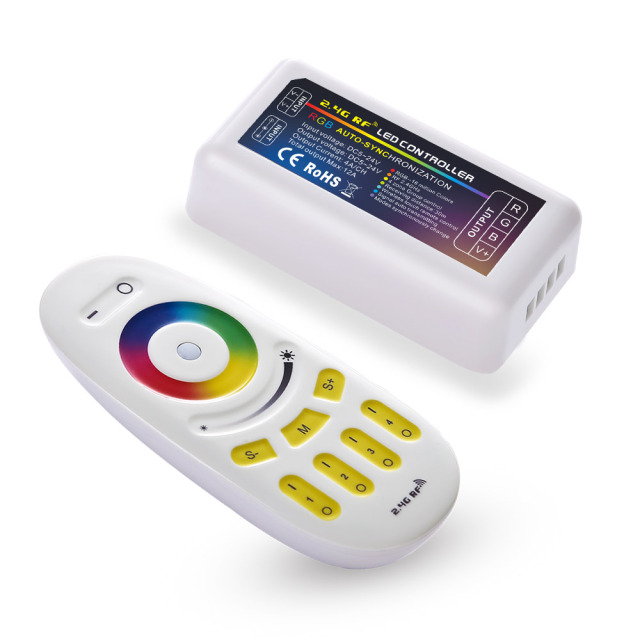

Product Name: 2.4G RF Touch screen RGB remote controller
In/output voltage: DC5-24V
Output current: 4A/CH Max: 12A
Working temperature:-30~+55℃
Output power:12V:<144W,24V:<288W
Dimension: L85XW45XH23mm
Net weight: 50g Gross weight: 75g
Packing size:L95XW52XH27mm
Voltage: 3V(AAA * 2PCS)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 5.5 dBm
Standby Power Consumption: 25uA
Control Distance: 30m

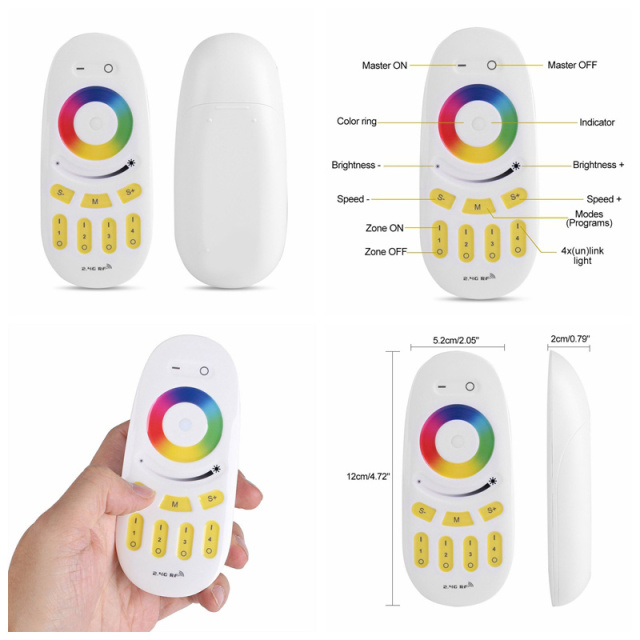

Size: 120*52.5*21mm
Inner box size: 123*56*26mm

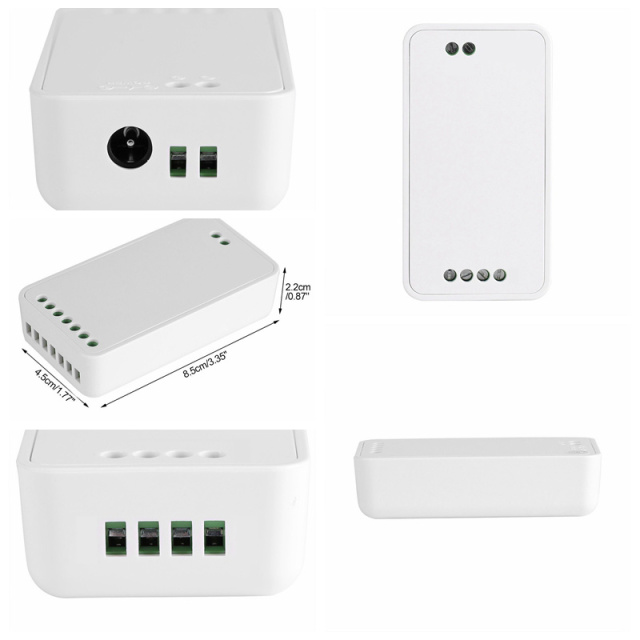

Controller Dimention：
Function information:
- Use the 2.4G radio frequency wireless to control, it no need to point at controller, can around the obstacles to control.
- About 20-30m empty remote control distance.
- Remote control has touch function.

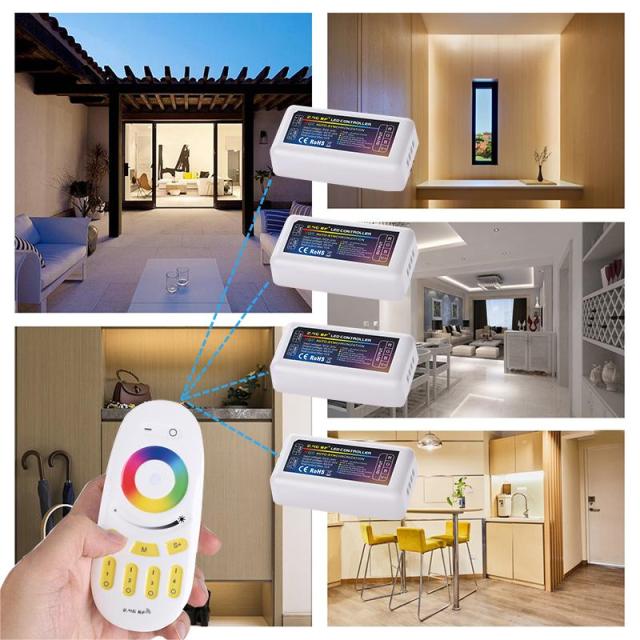

Auto-Synchronization function：
Different controllers can work synchronously when they are strarted at different times, controlled by the same remote,controller will be auto-synchronizing in the same brightness, same color temperature turn on, turn off at the same time within 30m controlling distance. (except the“Mode 5")
Signal auto-Transmitting function
This strip controller can transmit the signal between each other within 30 m, as long as there is a strip controller within 30 m, the remote control distance can be limitless
Connection description：
Attention:

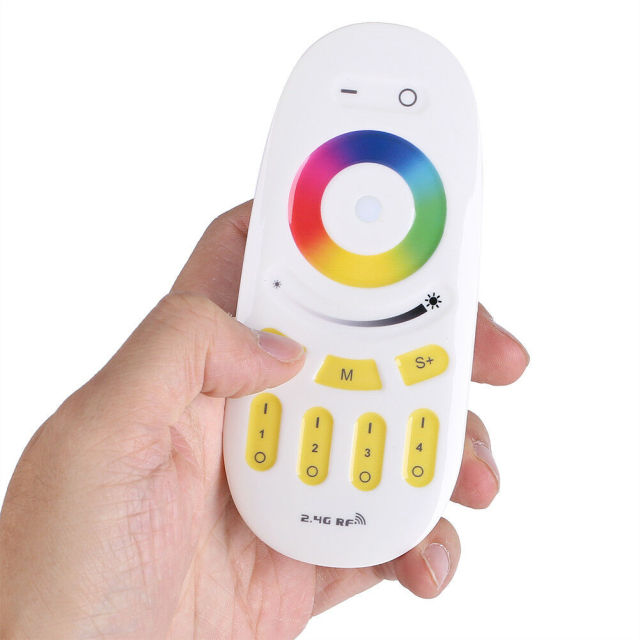

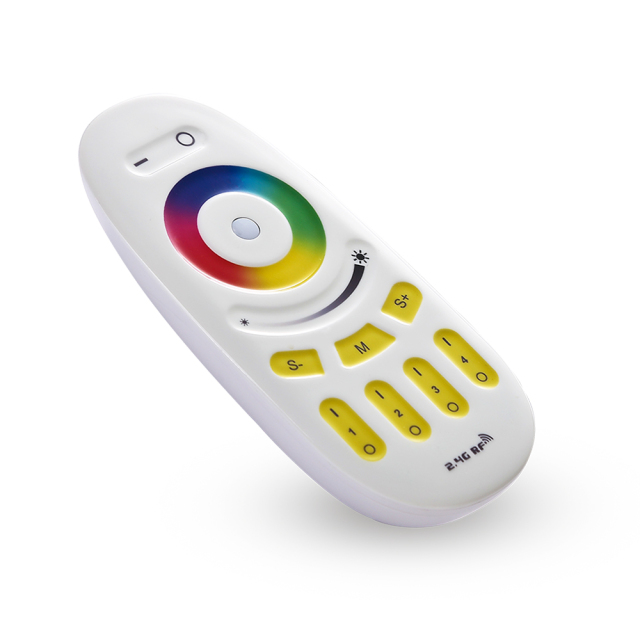

Remote:
- In the using of the remote, if the indicated lamp blinking quickly, please change the battery in time. Please don't use poor quality battery to avoid the leaking of battery liquid to damage the remote controller.
- Please keep your finger off the touch ring when installing the batteries, to improve its sensitivity, and use the remote (3 seconds later) after the batteries are installed. Please re-install the batteries, if the touch ring is found low-sensitivity.
- This 2.4GHz remote control system is precise electronic product; don't use it in humid, high temperature, dust and high voltage environment; Saving it at indoor, dry and no static electricity environment.
- Please don't use the remote controller on the wide-range metal or strong electromagnetic
- Please do not use the remote in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.

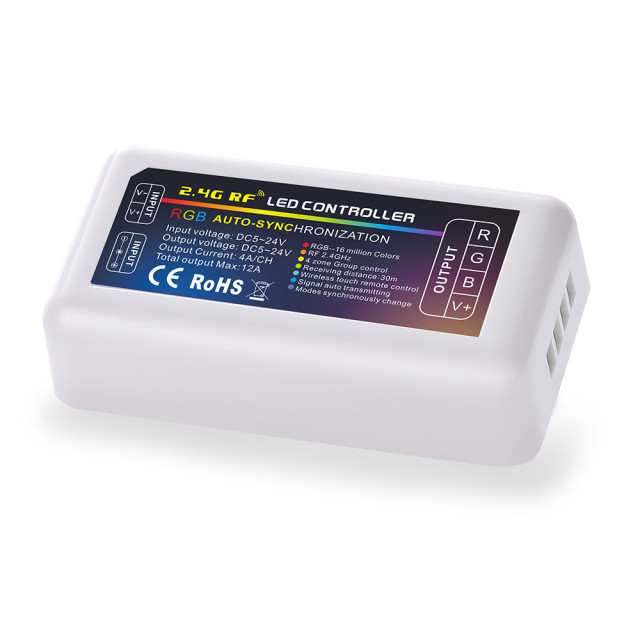

Controller:
- Controller’s input voltage is DC5-24V, other input voltage are not allowed, Please do not overload, the total max output current is 12A;
- Please connecting the power input and LEDs in power off, and power on in correct connection.
- Please don’t reverse the power input connection of both cathode and anode, please switch on again only when it is in right connection and no short circuit.
- Please power off the device if you don’t use it for a quit long time, don’t place in high dust, high temperature environment.
- Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.
Application:
